JIN NA 11 K UT SEWING MACHINE

Name: JIN NA 11 K UT SEWING MACHINE
Brand: NEWTECH MACHINERY
Price: 40200.00 INR
Availability: InStock

Price 40200.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

JIN NA 11 K UT SEWING MACHINE Specification

Dimension (L*W*H)
74*27*51 Millimeter (mm)

Feed Mechanism
top and bottom feed mechanism

Warranty
1 year

Stitch Formation
single-needle 301 lockstitch

Color
multi colour

Sewing Speed
2,000 stitches per minute (sti/min)

Needle
1

Sewing Thickness
16mm

Stitch width
0mm

Condition
New

Stitch Length
8mm Millimeter (mm)

Product Type
JIN NA 11 K UT SEWING MACHINE

Power
750w Watt (w)

Voltage
220v Volt (v)

JIN NA 11 K UT SEWING MACHINE Trade Information

Minimum Order Quantity
1 Number

Supply Ability
10 Per Month

Delivery Time
3 Days

JIN NA 11 K UT SEWING MACHINE About

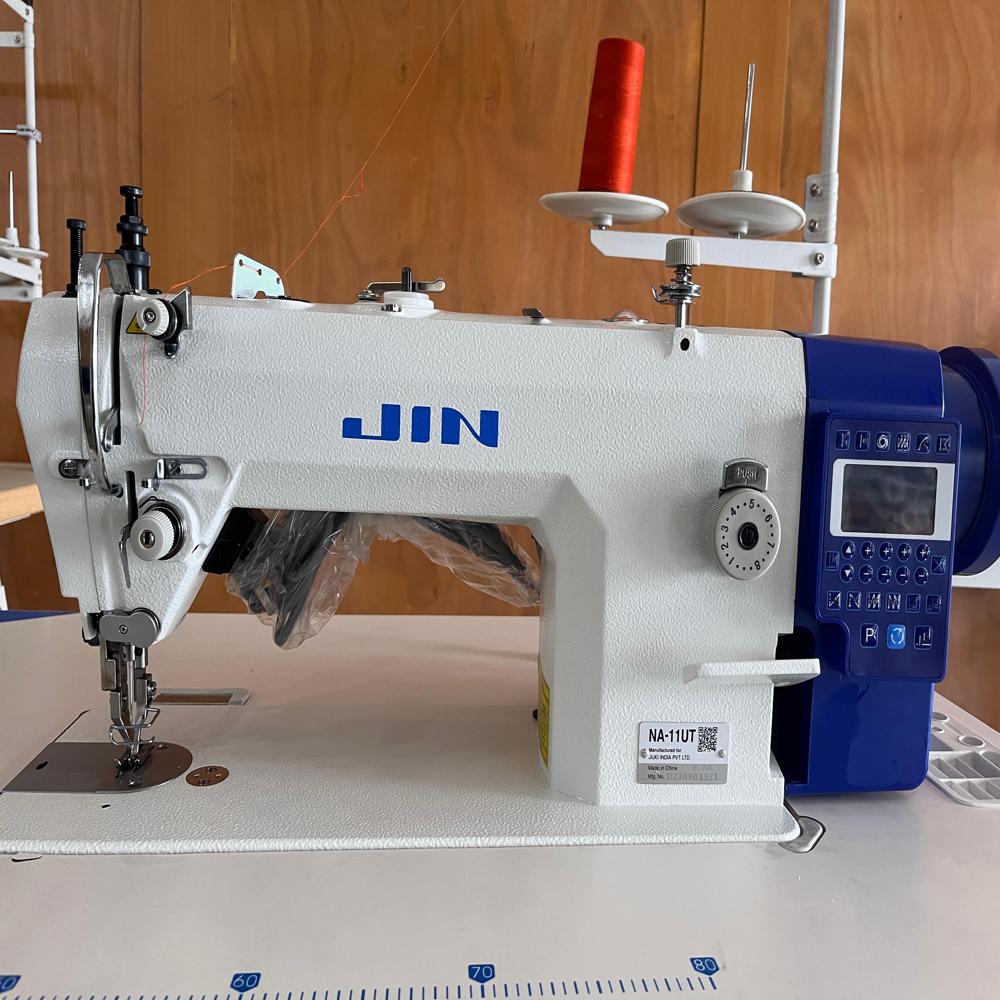

The JIN NA-11UT (often abbreviated as NA-11 UT) is a single-needle, top and bottom-feed industrial lockstitch machine designed by JUKI for heavy-duty materials. The "UT" designation stands for its Automatic Thread Trimmer feature.YouTube +3

Key Performance Features

Heavy-Duty Handling: Specifically built for sewing upholstery, leather, canvas, sofas, and bags.

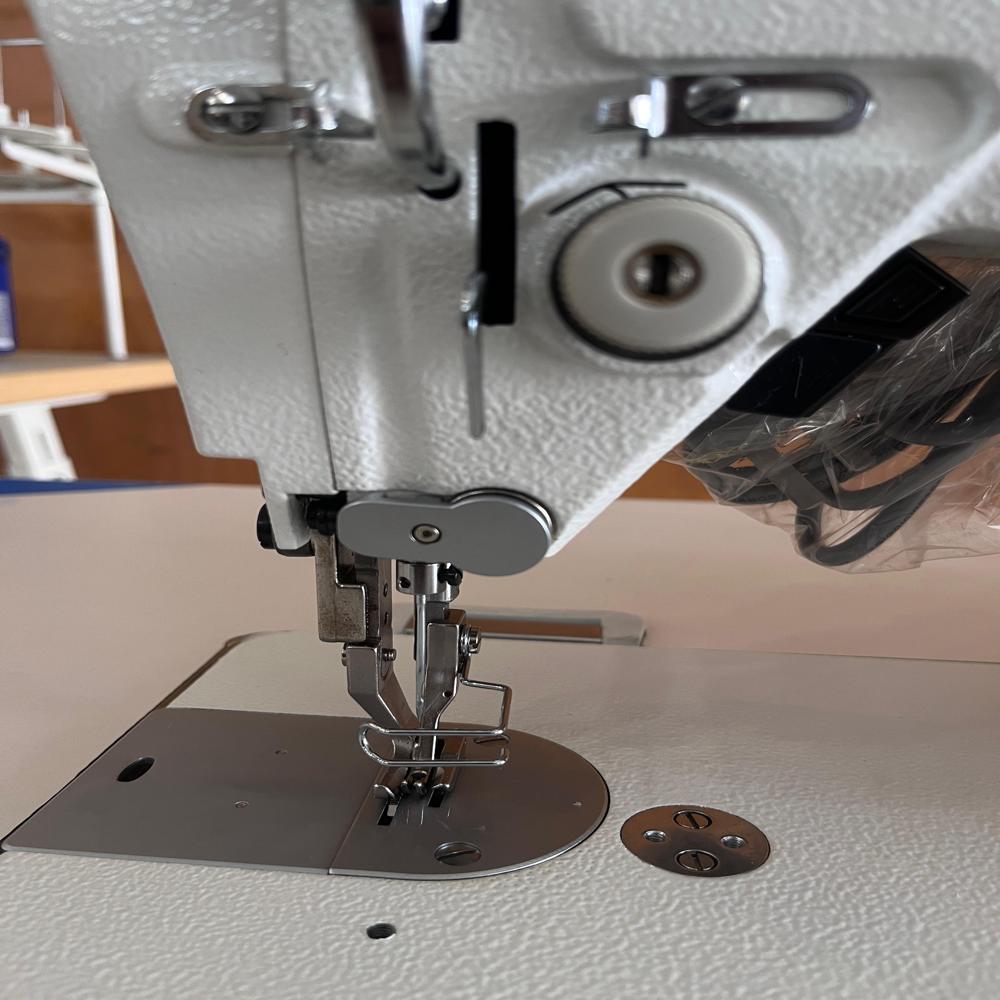

Top and Bottom Feed: This mechanism prevents fabrics from shifting or puckering by feeding multiple layers evenly.
Double-Capacity Hook: Uses a horizontal-axis large hook that reduces the frequency of bobbin changes.
Integrated Direct Drive: Features a built-in 750W high-torque motor for strong material penetration and quiet operation.
Stitch Capability: Offers a maximum stitch length of 8mm and a speed of up to 2,000 stitches per minute.

Technical Specifications

Feature	Details
Needle Type	DP x 17 (#18#24)
Max. Stitch Length	8 mm
Max. Sewing Speed	2,000 sti/min
Presser Foot Lift	8 mm (by hand) / 16 mm (by knee)
Work Space	261 mm x 130 mm (Extended arm)
Head Weight	~37 kg

Automation and Convenience

Auto Trimming & Backtacking: Includes automatic thread trimming, start/end backtacking, and needle positioning.

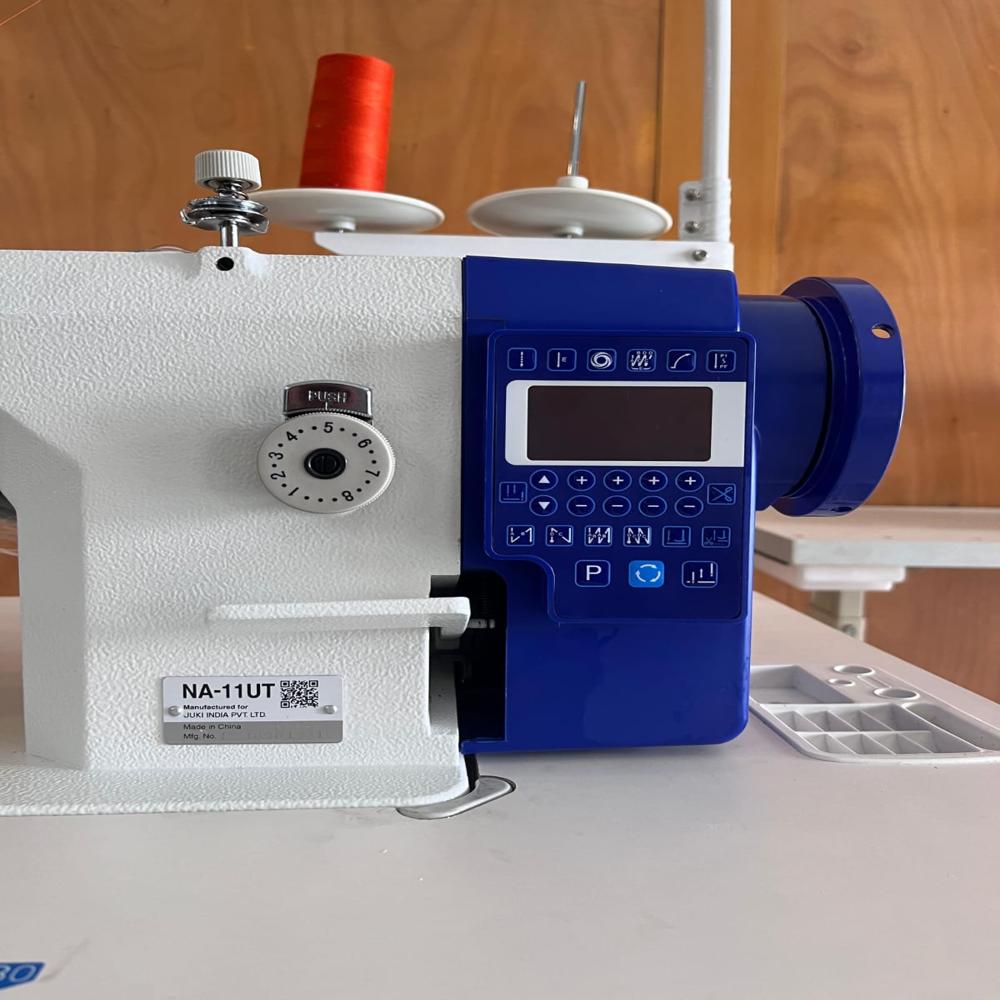

User-Friendly Panel: A built-in control panel allows you to quickly adjust sewing modes and speeds (as low as 100 sti/min).
LED Lighting: Comes standard with built-in LED lights under the arm jaw to reduce operator fatigue

The JIN NA-11UT is specifically designed for bulky and multi-layered heavy-weight materials. While industrial specifications often focus on presser foot lift, this machine is engineered to handle the following thicknesses and material type

Material Thickness & Capacity

Max Presser Foot Clearance: The machine allows for a maximum clearance of 16 mm when using the knee lifter (8 mm by hand). This high lift is specifically designed to accommodate bulky materials.
Layer Handling: Its top and bottom feed mechanism (walking foot style) allows it to sew through multiple layers of heavy material without shifting or puckering.
Needle & Thread Capacity: It uses heavy-duty DP x 17 needles (sizes #18 to #24) and can handle thick threads ranging from #30 to #8.

The machine is optimized for high-performance sewing on:

Upholstery & Furniture: Thick leather or heavy fabrics for sofas and chairs.
Heavy Bags & Luggage: Multi-layer canvas, Cordura, and materials reinforced with plastic or foil.
Automotive: Heavy-duty car seats and workwear
