JUKI 8100B-7 SEWING MACHINE

Name: JUKI 8100B-7 SEWING MACHINE
Brand: NEWTECH MACHINERY
Price: 23999.0 INR
Availability: InStock

Price 23999.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

JUKI 8100B-7 SEWING MACHINE Specification

Color
WHITE

Power
550 Watt (w)

Voltage
240 Volt (v)

Stitch Formation
relies on the precise synchronization of four key components: the needle, the thread take-up lever, the rotary hook, and the feed dogs.

Needle
1

Warranty
yes

Dimension (L*W*H)
495*273*404 Millimeter (mm)

Sewing Speed
5000

Stitch Length
5 Millimeter (mm)

Stitch width
5mm

Sewing Thickness
4 mm to 5 mm

Product Type
JUKI 8100B-7 SEWING MACHINE

Feed Mechanism
bottom-feed mechanism

Condition
Old

JUKI 8100B-7 SEWING MACHINE Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
2 Days

JUKI 8100B-7 SEWING MACHINE About

The Juki DDL-8100B-7 is a high-speed, direct-drive, single-needle industrial lockstitch sewing machine equipped with an automatic thread trimmer. It is engineered primarily for sewing light to medium-weight materials like cotton, denim, and synthetics, making it a staple for tailoring workshops, sampling rooms, and garment manufacturing plants.

Key Technical Specifications

The machine balances industrial-grade power with optimized energy consumption: [1]

Maximum Sewing Speed: 4,000 to 5,000 stitches per minute (spm).
Maximum Stitch Length: 5 mm.
Presser Foot Lift: 5.5 mm by hand, or up to 13 mm using the knee lifter.
Needle System: DB1 (#14), accommodating sizes from #9 to #18.
Motor & Power: Integrated 550W direct-drive servo motor operating at 220V.

Core Features & Benefits

Direct-Drive System: The energy-saving servo motor is mounted directly to the machine head. This eliminates power loss from a traditional belt, provides quicker start-up times, increases needle penetration force, and significantly reduces operating noise and vibration.
Automatic Thread Trimmer (Undertrimmer): Safely trims both the needle and bobbin threads when you press back on the heel of the foot pedal, cutting down production times and material waste.

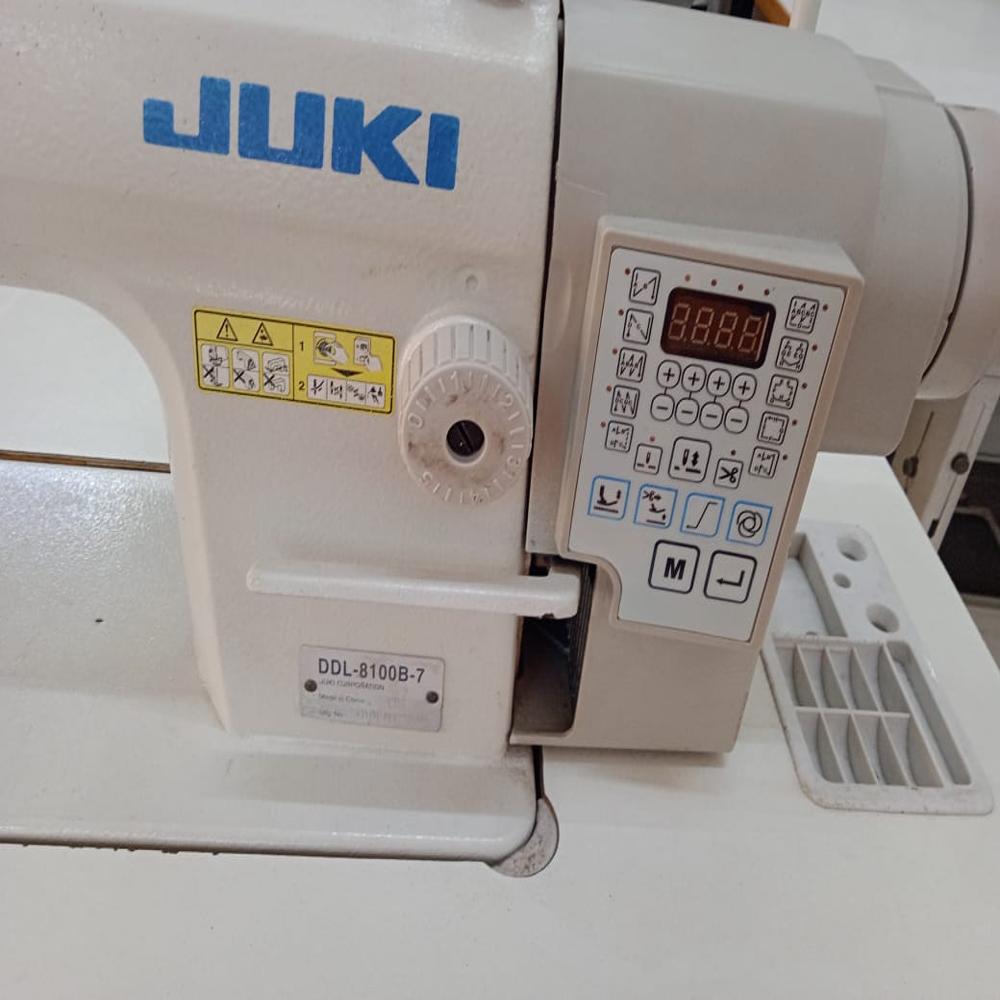

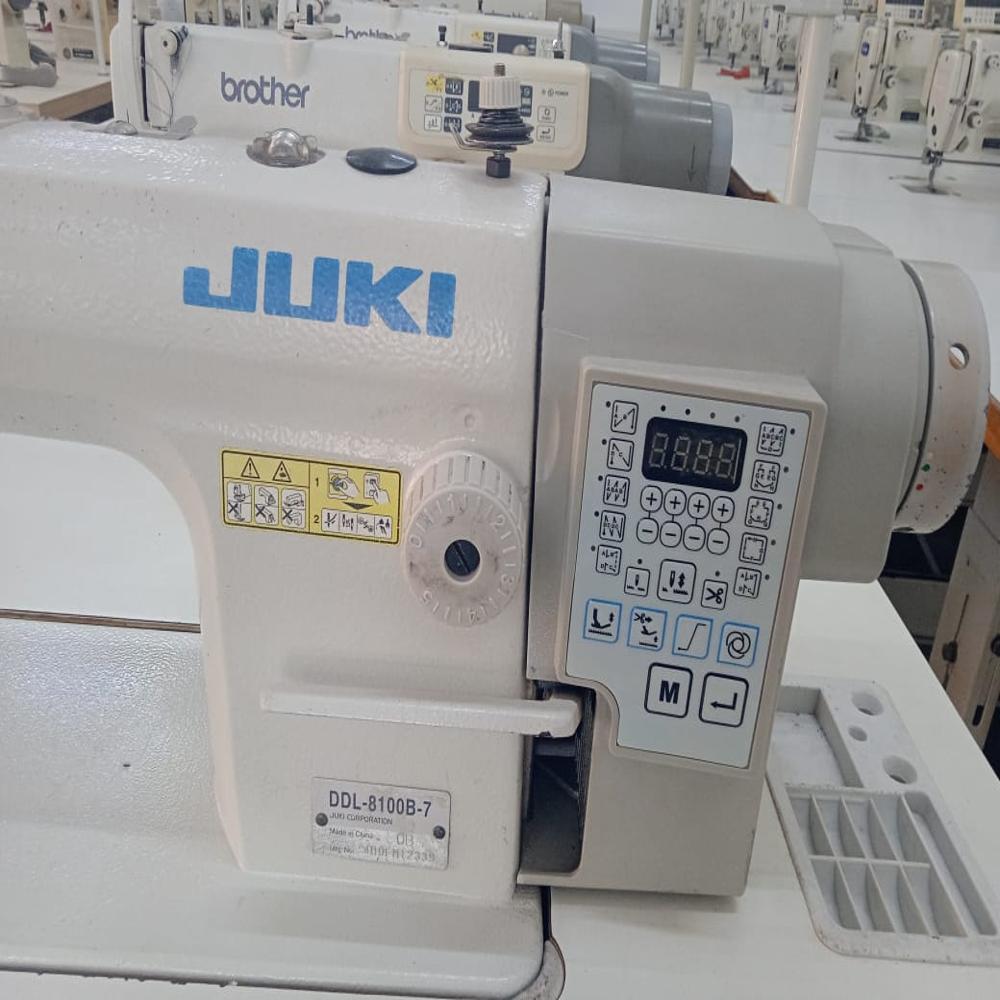

Integrated Operation Panel & Control Box: The compact control panel is built right onto the machine head, letting you easily program specific functions like backtacking (double or triple stitching at the start/end of a seam) and needle position choices (always stopping in the up or down position).
Enhanced Seam Quality: Built with a newly developed hook and upgraded tension springs to prevent material snagging and ensure a clean, beautiful stitch even at its fastest speeds. [1, 2, 3]

Logistics & Purchasing

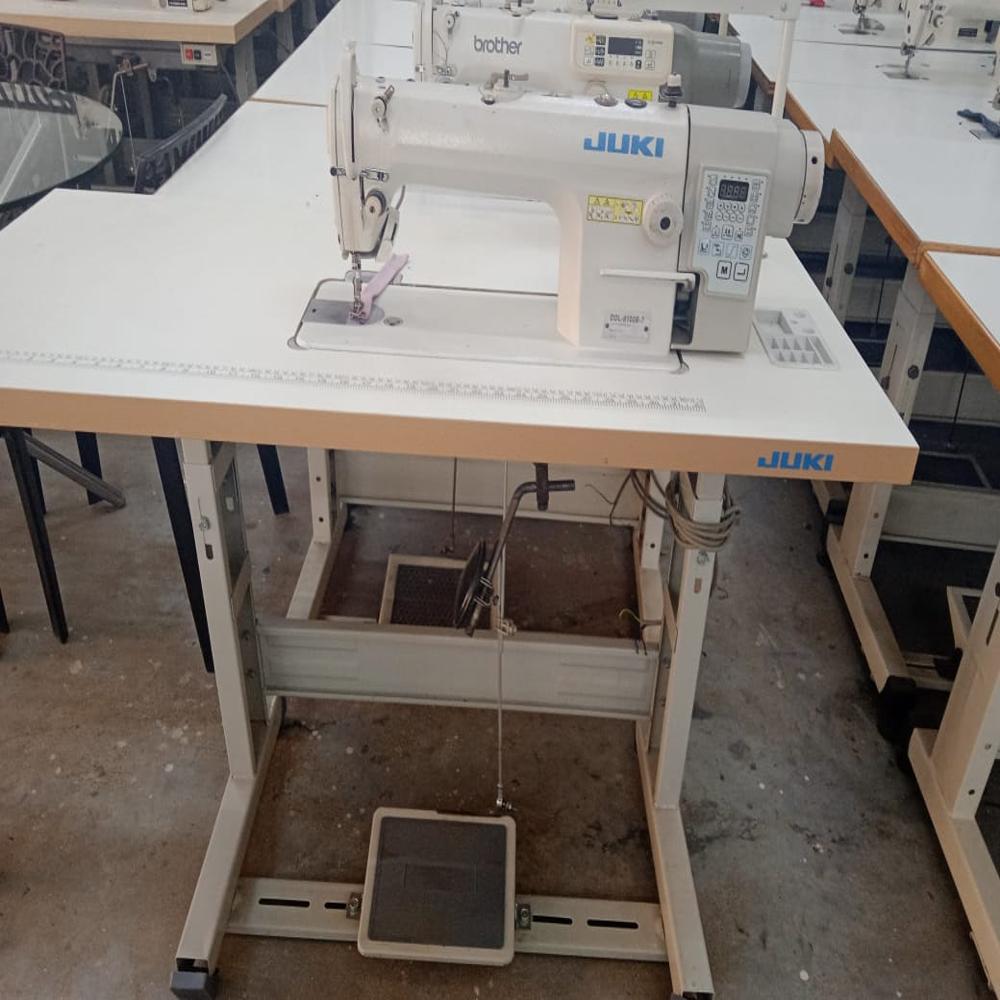

If you are planning to purchase this machine, it is typically sold as a complete unit comprising the machine head, an industrial table, and a stand. Please note that because it is a heavy industrial unit, professional assembly may be required unless you are comfortable configuring industrial tables and timing pedal sensors yourself. [1, 2, 3, 4, 5]

Are you considering this machine for a home studio or a high-volume factory line? Let me know if you would like me to compare its features against other popular alternatives like the Jack A2B or Juki DDL-8700.

Precision Stitching for Professional Results

The JUKI 8100B-7 sewing machine delivers exceptional stitching accuracy, owing to the synchronized performance of its needle, rotary hook, feed dogs, and thread take-up lever. This carefully balanced mechanism ensures each stitch is uniform, helping users achieve high-quality finishes on a variety of materials.

Versatile Performance Across Multiple Fabrics

Designed for both light and moderately heavy textiles, the JUKI 8100B-7 can sew materials up to 5 mm thick with maximum efficiency. Its powerful motor and reliable bottom-feed system contribute to smooth, even feeding for consistent work output - making it suitable for garments, upholstery, and more.

Robust Industrial Build with Warranty Support

Even in its old yet sturdy form, the JUKI 8100B-7 stands out with its durable construction and straightforward maintenance. Users in India benefit from assured warranty coverage, coupled with extensive service and supply support, maximizing both machine longevity and business continuity.

FAQ's of JUKI 8100B-7 SEWING MACHINE:

Q: How does the bottom-feed mechanism work on the JUKI 8100B-7 sewing machine?

A: The bottom-feed mechanism utilizes the movement of feed dogs beneath the material to advance the fabric evenly as you sew, resulting in consistent stitch formation and minimizing fabric shifting even at high speeds.

Q: What types of projects can I handle with the JUKI 8100B-7 given its stitch length and sewing thickness capacity?

A: With a stitch length of 5 mm and the ability to sew materials 4 to 5 mm thick, this machine is excellent for garments, light upholstery, denim, and similar medium-heavy fabrics.

Q: When is it recommended to perform maintenance on the JUKI 8100B-7?

A: Regular maintenance should be scheduled after extensive usage or at least monthly to keep the feeding, rotary hook, and threading system functioning optimally, especially due to its high-speed operation.

Q: Where can I obtain warranty or support services for the JUKI 8100B-7 in India?

A: Warranty and support services are available via authorized JUKI importers, traders, and service providers across India. Contact your supplier for specific service locations and coverage details.

Q: What is the process for setting up the JUKI 8100B-7 for first-time use?

A: Begin by mounting the machine securely, connecting the power to a 240V supply, properly threading according to the manual, and testing stitch settings on sample fabric to ensure the synchronized operation of its stitching components.

Q: How does the JUKI 8100B-7's speed benefit my production?

A: Operating at up to 5,000 stitches per minute, the JUKI 8100B-7 significantly boosts productivity in high-volume settings, allowing you to complete projects more efficiently without sacrificing stitch quality.
