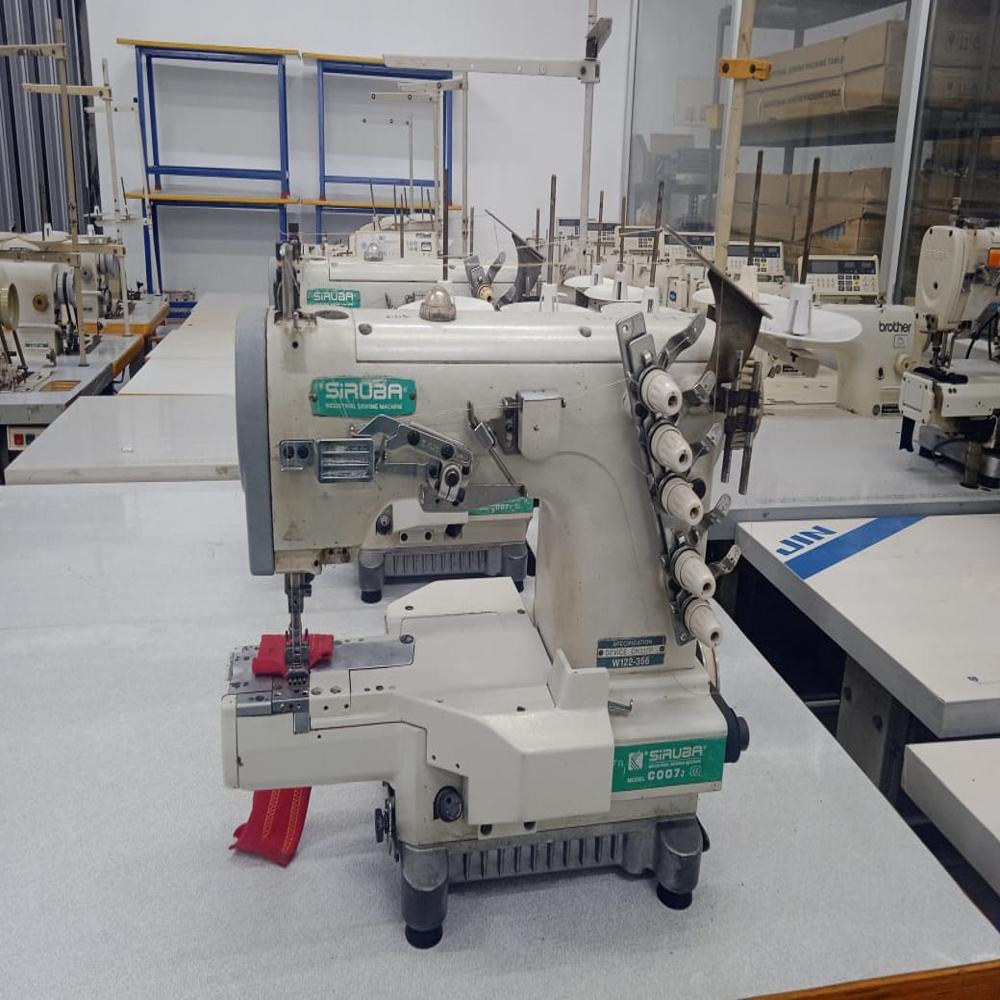

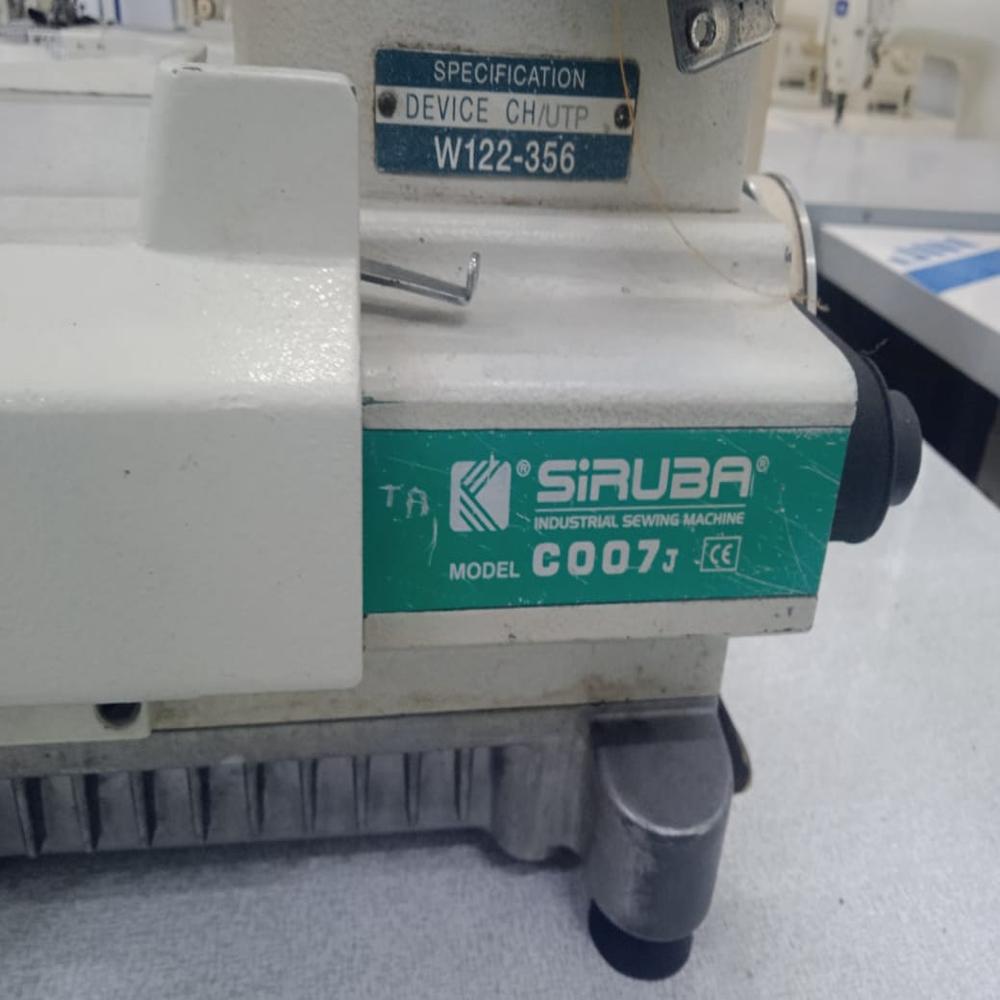

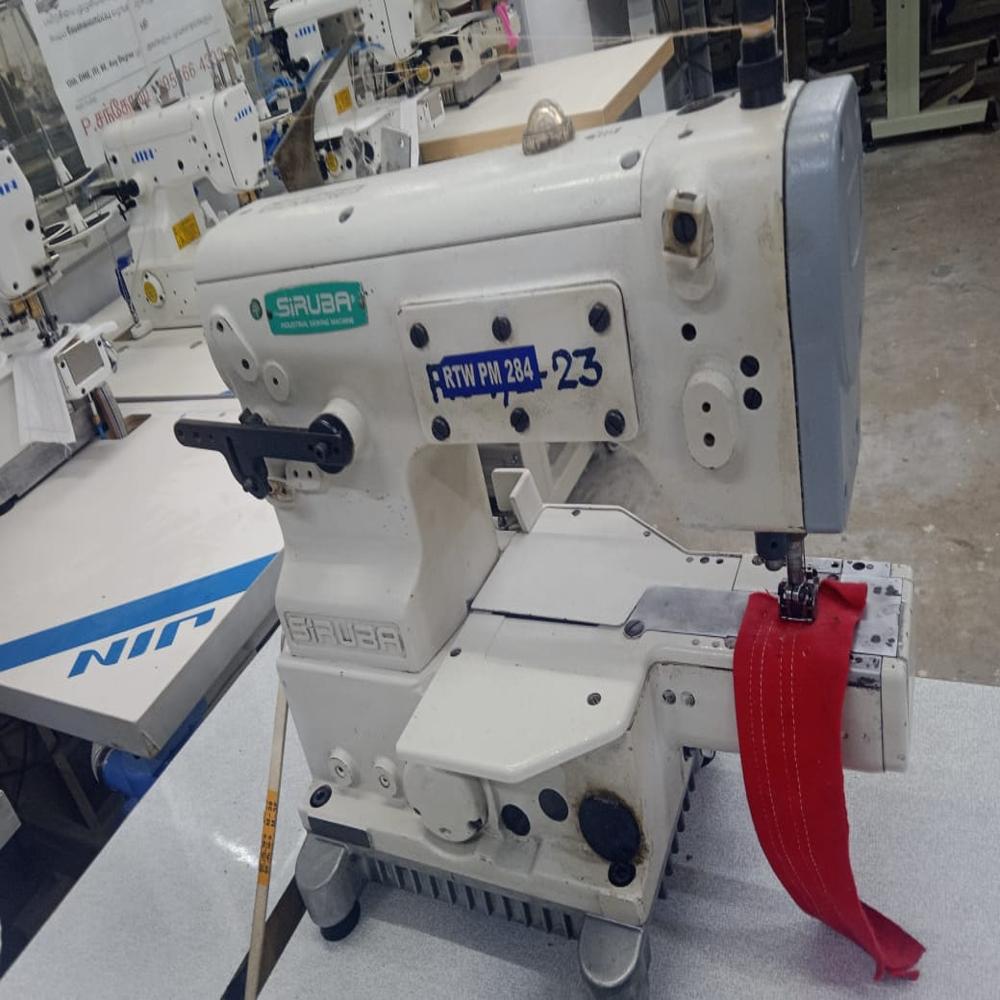

SIRUBA C007J CYLINDER BED (ORDINARY)

Name: SIRUBA C007J CYLINDER BED (ORDINARY)
Brand: NEWTECH MACHINERY
Price: 30000.0 INR
Availability: InStock

Price 30000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

SIRUBA C007J CYLINDER BED (ORDINARY) Specification

Stitch width
6.4 mm

Sewing Thickness
3.5 mm to 4.5 mm

Power
550 Watts Watt (w)

Color
white

Product Type
SIRUBA C007J CYLINDER BED( ORDINARY)

Needle
UY128GAS.

Voltage
240 Volt (v)

Sewing Speed
5,000 stitches per minute

Dimension (L*W*H)
460 mm 250 mm 400 mm Millimeter (mm)

Warranty
yes

Feed Mechanism
differential drop feed mechanism

Condition
Old

Stitch Length
3.6 mm Millimeter (mm)

Stitch Formation
stitch using a Class 600 Interlock (Coverstitch) mechanism

SIRUBA C007J CYLINDER BED (ORDINARY) Trade Information

Minimum Order Quantity
1 Number

Delivery Time
2 Days

About SIRUBA C007J CYLINDER BED (ORDINARY)

The Siruba C007 cylinder bed series is an industrial, ultra-high-speed interlock (flatlock) sewing machine. It is engineered primarily for knitted apparel production. Its specialized cylindrical bed makes it perfect for sewing "closed-circuit" or tubular garment sections. These include items like sleeve cuffs, T-shirt necklines, and waistbands. [1, 2, 3]

Core Key Specifications

Stitching Speed: Reaches up to 4,500 to 5,000 stitches per minute.
Configuration: Typically setup with 3 needles and 5 threads.
Standard Gauge: Popular needle gauge size of 6.4 mm.
Stitch Length: Delivers a maximum length of 3.6 mm. [1, 2]

Key Technological Features

Cylinder Bed Design: The small-diameter and shortened cylinder bed drastically improves material handling for complex circular folds. [1, 2, 3]
Dual Thread Take-up: Features a combined thread tension lever mechanism that handles both ultra-lightweight and heavy-duty fabrics smoothly. [1, 2]
Oil Sealing Technology: Employs an advanced oil-barrier layout around the needle bar to fully prevent oil splashes or fabric stains during high-speed runs. [1, 2]
Energy-Saving Servo Motors: Variants come integrated with direct-drive servo motors that significantly cut power consumption while reducing vibration. [1, 2, 3, 4]
FFT Top-Feeding Function: Certain subclasses feature top and bottom differential feeding to handle slick, elastic, or multi-layered textiles evenly. [1, 2]

Common Subclasses and Functional Variants

The Siruba C007 platform is highly modular, adapted for explicit production tasks: [1, 2]

W122: General seaming and standard bottom hemming.
W222: Specifically optimized for tape binding applications.
W812: Tailored for hemming T-shirt bases using an integrated left-side fabric trimmer.
W922: A 4-needle variation designed to simulate high-end "autolap" flat-seaming.
Automation (UTP/UTD): Premium iterations pack automatic pneumatic thread trimmers and automatic presser foot lifters to accelerate factory output. [1, 2]

Available Models

Siruba Cylinder Bed Ut C007KP:
- Features a robust direct-drive configuration suited for multi-functional seaming.
- Handles both thin and thick elastic materials seamlessly without puckering. [1, 2]
Siruba C007KD Cylinder Bed Sewing Machine:
- Features direct-drive motor assembly on the machine head.
- Equipped with automatic thread cutting systems for fast-paced factories. [1, 2]

Watch this demonstration detailing the high-speed performance and operational mechanics of the Siruba cylinder bed interlock system:

If you are looking to purchase or upgrade, please share:

Your specific fabric type (e.g., highly elastic sportswear, light knits, or thick fleece)
The exact sewing operation required (e.g., tape binding, simple hemming, or attaching elastic)
Whether you need automated trims (UTP pneumatic features) [1]

This will help identify the exact model subclass best suited for your setup.
