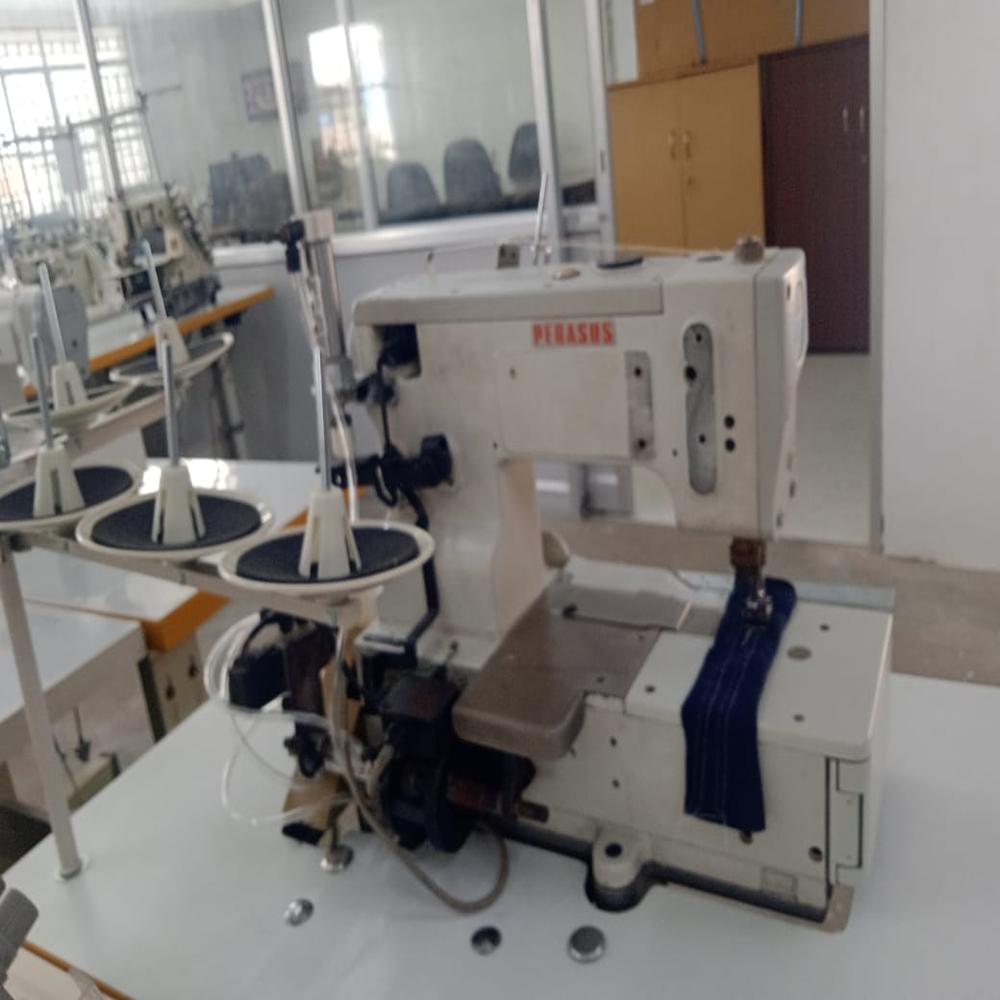

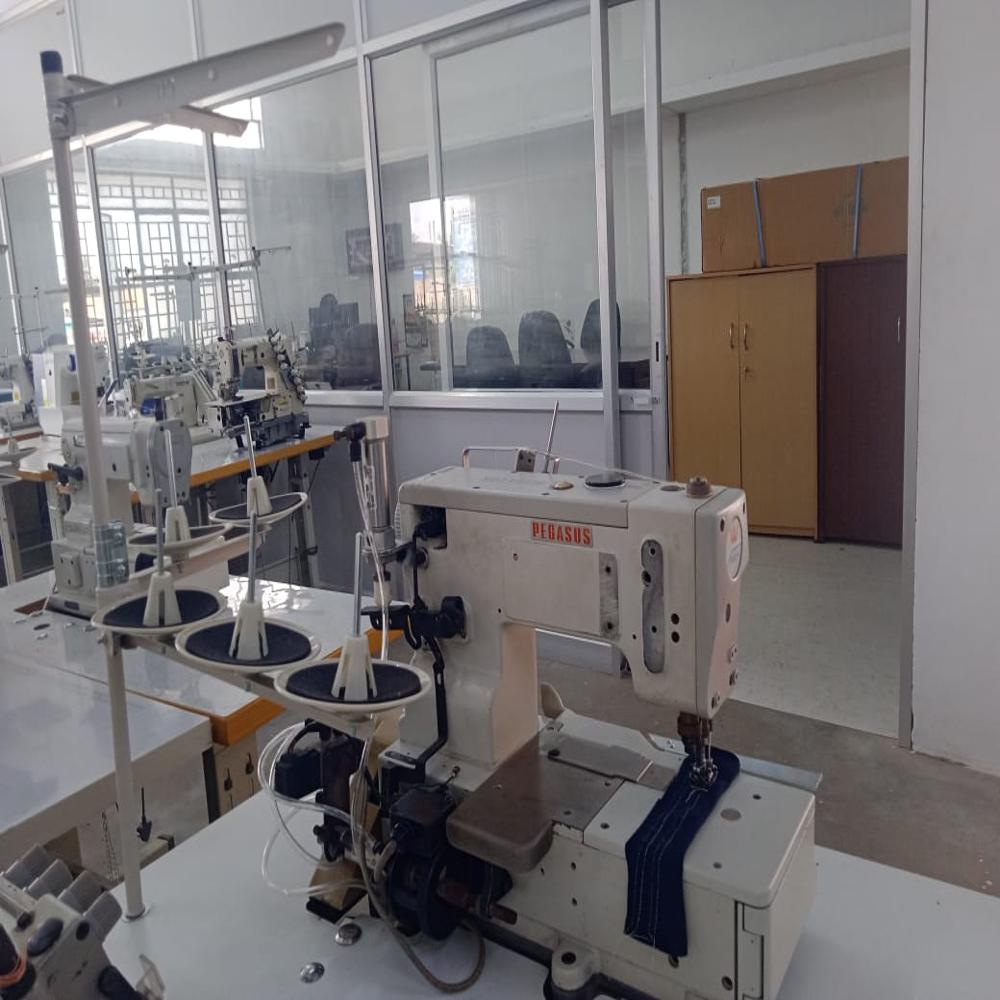

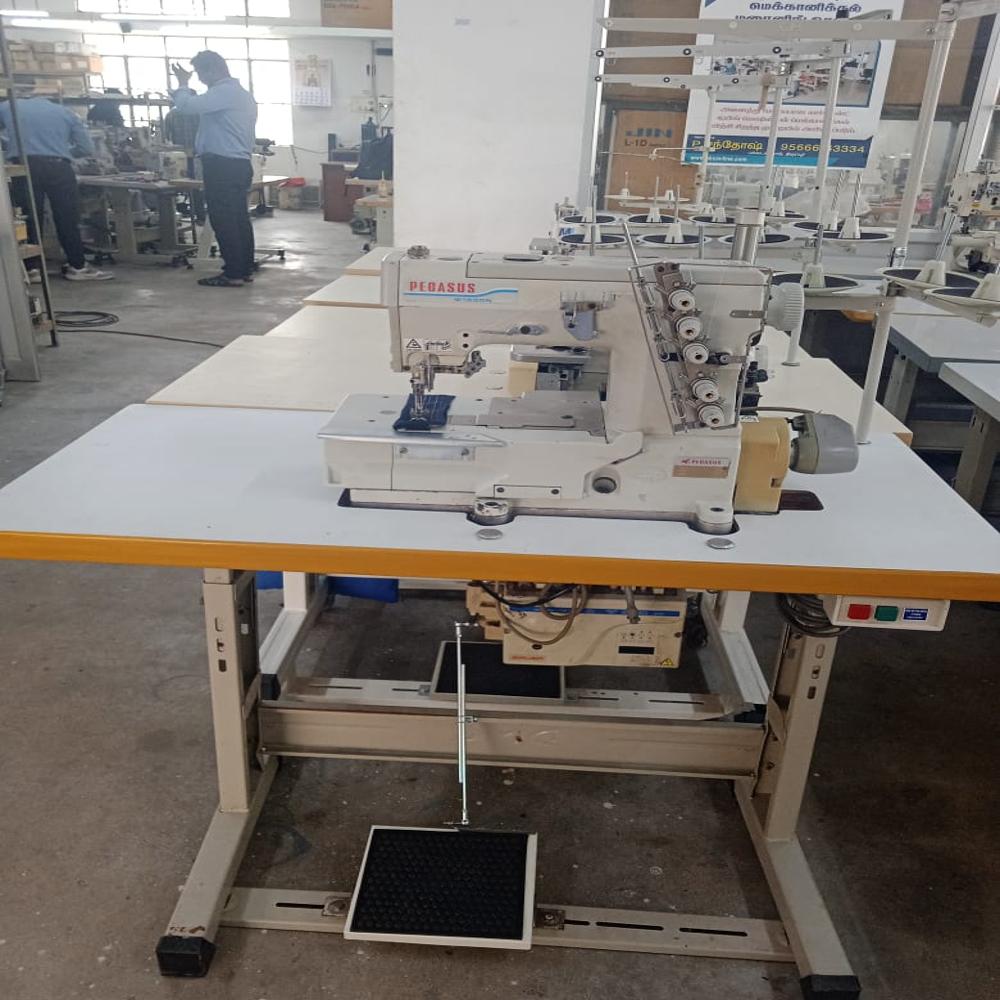

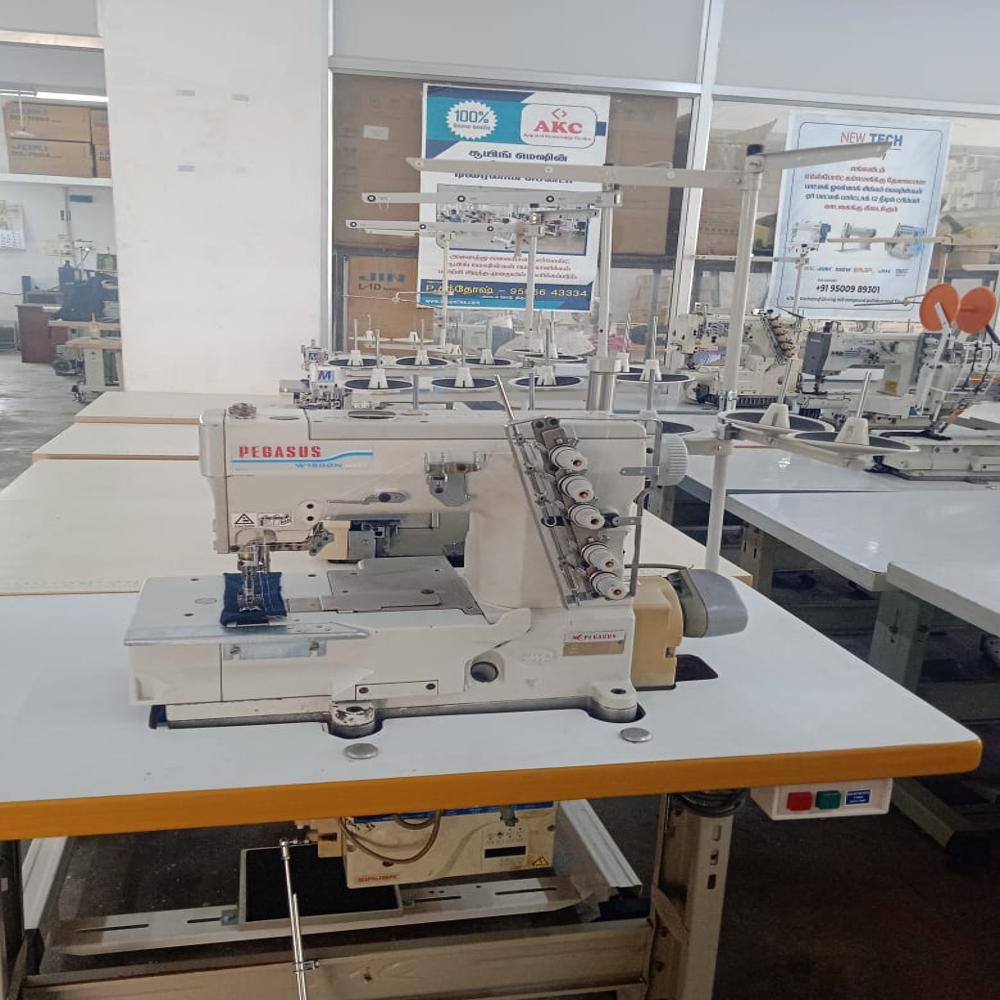

PEGASUS W1500N FLATBED FLATLOCK SEWING MACHINE

About PEGASUS W1500N FLATBED FLATLOCK SEWING MACHINE

• Machine Type: Industrial Flatbed Interlock / Flatlock.
• Maximum Sewing Speed: 5,000 to 6,000 stitches per minute (SPM).
• Stitch Formation: ISO 600 Class interlock (coverstitch) using 2 or 3 needles.
• Stitch Length: Fully adjustable from 1.2 mm to 4.4 mm.
• Max Fabric Thickness: Accommodates fabrics up to 6.3 mm under the presser foot.
• Available Gauge Sizes: Common needle spacing options include 3.2 mm, 4.0 mm, 4.8 mm, 5.6 mm, and 6.4 mm. [1, 2, 3]

• Differential Drop Feed Mechanism: Features a dual-feed system (main and differential feed dogs) with an adjustable ratio from 1:0.5 to 1:1.3. It allows gathering or stretching control to prevent fabric puckering or wavy seams on high-stretch elastic materials. [1, 2, 3]
• Multi-Thread Control Systems: Operators can quickly select between soft or tight stitch configurations depending on fabric elasticity requirements. [1]
• Oil Blocking Technology: Equipped with highly effective oil barriers that protect sewn textiles from accidental stains during fast-paced production cycles. [1, 2]
• Ergonomic Design: The machine head comes in an off-white or sand beige finish specifically selected to reduce operator eye strain in factory environments. [1, 2]

• Machine Head Weight: 35 kg to 45 kg (Head assembly only).
• Full Workspace Size: Requires an industrial tabletop measuring roughly 120 cm (W) x 55 cm (D).
• Mounting Styles: Can be set up as non-submerged (sitting flat on top of the bench) or semi-submerged (recessed into the bench for a flush work surface). [1, 2, 3, 4]

• Complete Units: Available via industrial suppliers like Tradeindia.com or regional textile equipment dealers like IndiaMART.
• Components & Maintenance: Replacement elements such as loopers, presser feet, and specific assemblies are readily available via specialized components stores like StitchSpares.com. Detailed operational protocols can be reviewed in the official Pegasus W1500 Series Instruction Manual. [1, 2, 3, 4]
