PEGASUS W1500 FLATBED FLATLOCK SEWING MACHINE

Name: PEGASUS W1500 FLATBED FLATLOCK SEWING MACHINE
Brand: NEWTECH MACHINERY
Price: 20000.0 INR
Availability: InStock

Price 20000.0 INR/ Set

Get a Price/Quote

MOQ : 1 Set

PEGASUS W1500 FLATBED FLATLOCK SEWING MACHINE Specification

Feed Mechanism
differential drop feed mechanism

Sewing Speed
5,000 to 6,000 stitches per minute (SPM)

Power
550w Watt (w)

Color
sand beige or off-white

Condition
Old

Stitch Formation
interlock (coverstitch) formation,

Stitch Length
4.4mm Millimeter (mm)

Needle
2 or 3 needles,

Warranty
yes

Stitch width
6.4mm

Dimension (L*W*H)
40 cm x 25 cm x 30 cm. Centimeter (cm)

Voltage
220v Volt (v)

Operate Method
Electric

Sewing Thickness
6.3mm

Product Type
PEGASUS W1500 FLATBED FLATLOCK SEWING MACHINE

PEGASUS W1500 FLATBED FLATLOCK SEWING MACHINE Trade Information

Minimum Order Quantity
1 Set

Delivery Time
3 Days

About PEGASUS W1500 FLATBED FLATLOCK SEWING MACHINE

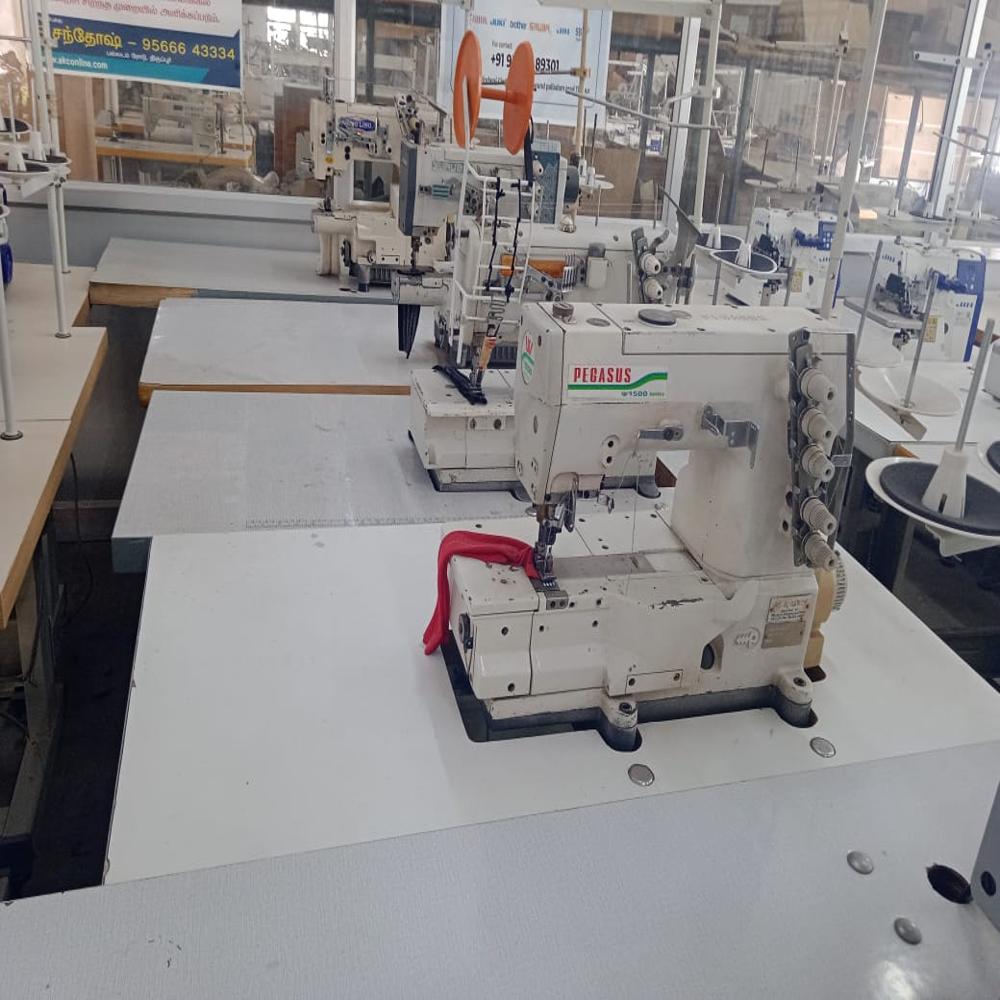

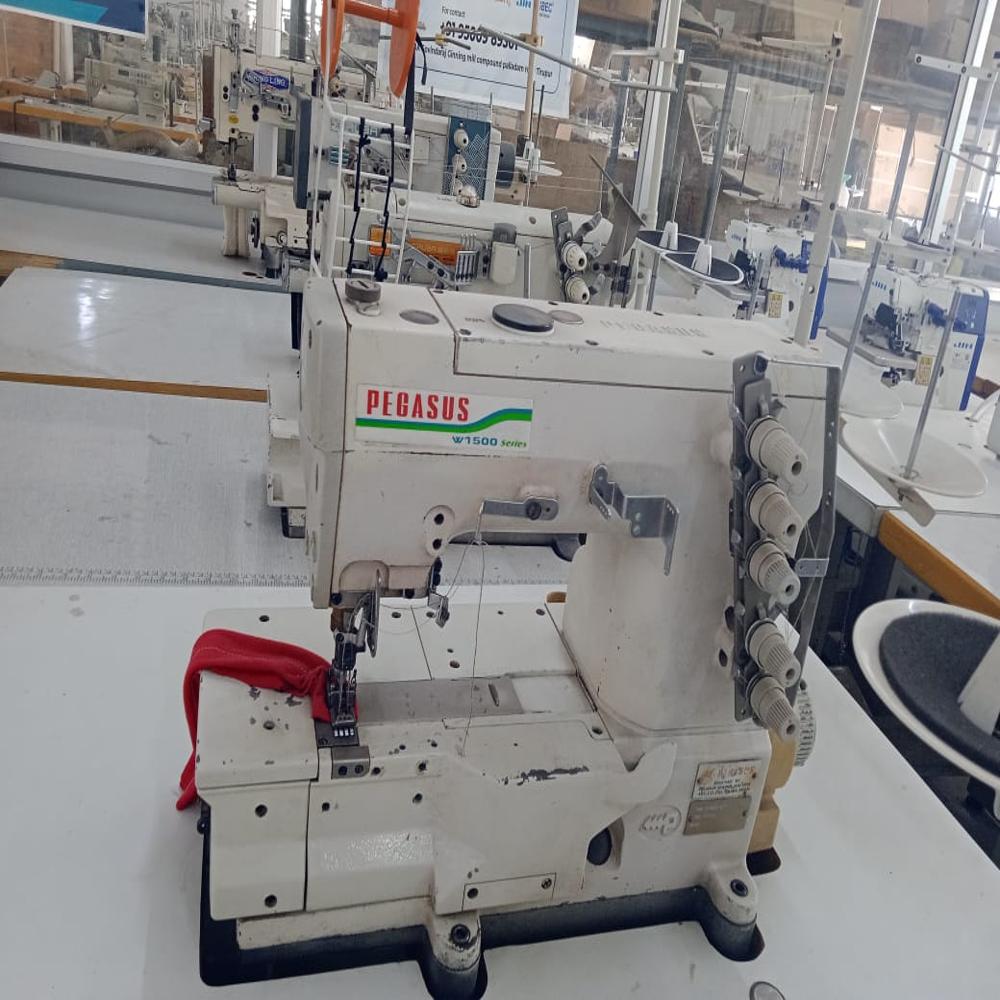

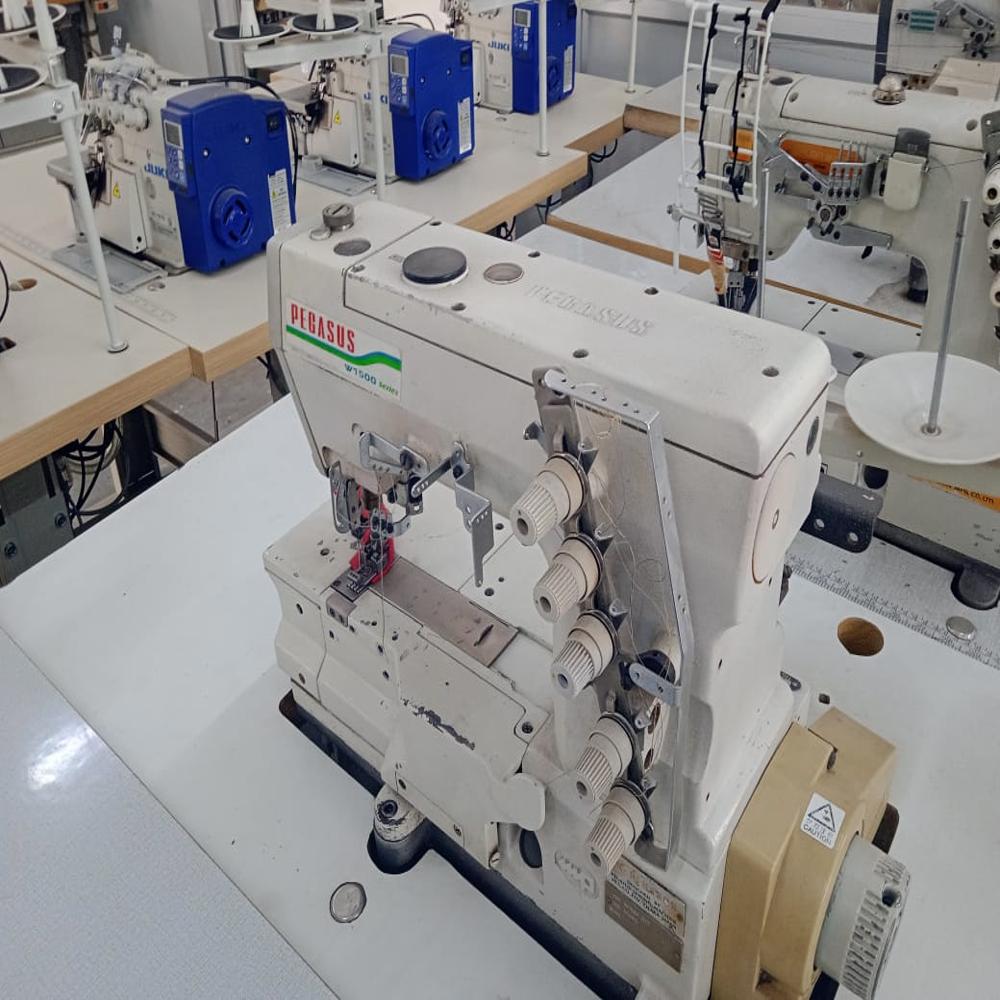

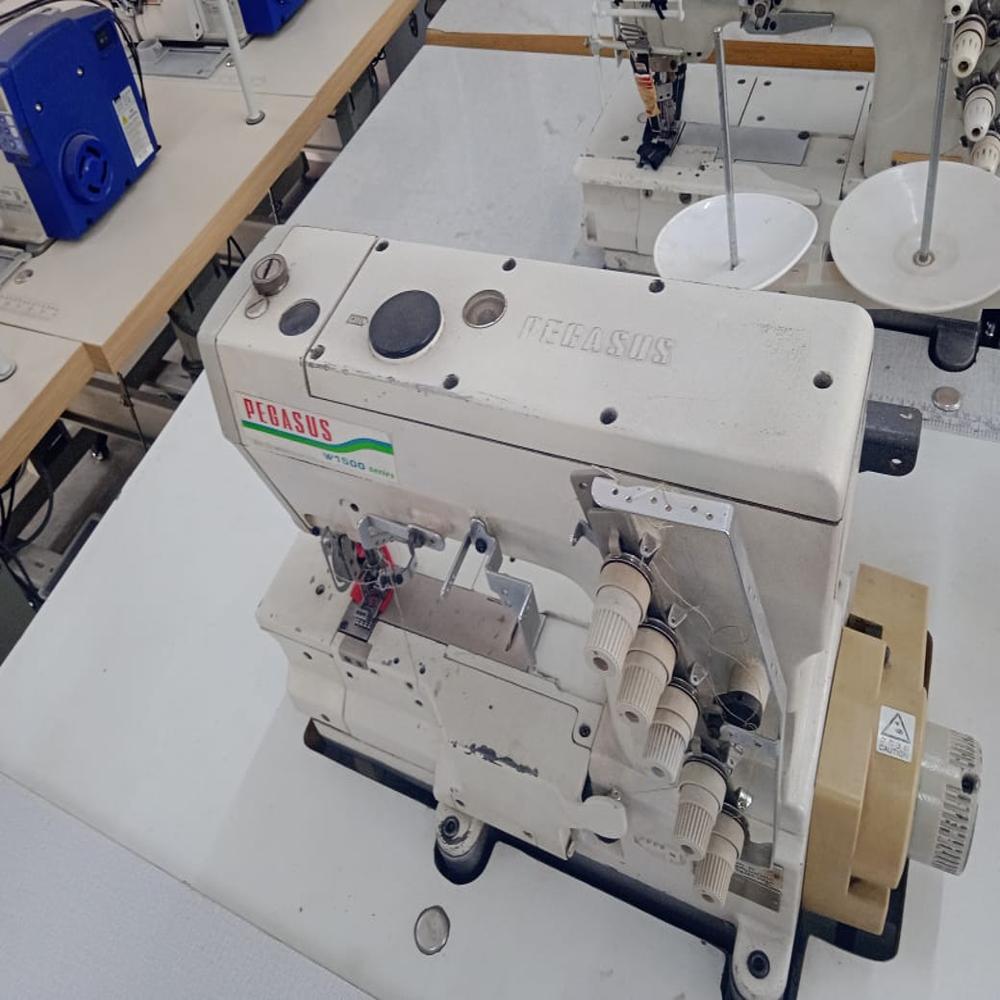

The Pegasus W1500 is an industrial flatbed interlock (flatlock) sewing machine designed for high-speed, professional-grade stitching. It is widely used in the garment industry for producing activewear, sportswear, lingerie, and knitwear due to its ability to create clean, stretchable, and uniform seams.

Key Specifications & Features

Machine Type: Industrial Flatbed Interlock / Flatlock.
Application: Ideal for general stitching on light to medium-weight fabrics like T-shirts, leggings, and innerwear.
Stitch Characteristics: Produces a low-bulk, flat seam that lies smooth against the skin, offering maximum comfort and high elasticity.
Speed: Capable of high-speed operation, typically ranging from 5,000 to 6,000 stitches per minute (SPM) depending on the specific sub-model.
Feed Mechanism: Advanced feed mechanism and thread control for smooth fabric handling.

The Pegasus W1500 is designed primarily for light to medium-weight fabrics, such as T-shirts, underwear, and activewear. Its sewing thickness is limited by its mechanical design:

Maximum Fabric Thickness: Generally around 5 mm to 6.3 mm, depending on the specific subclass.
Presser Foot Lift: The maximum clearance for fabric under the presser foot is 6.3 mm.
Stitch Length: It supports a maximum stitch length of 4.4 mm.

colour

The Pegasus W1500 machine head is standardly finished in a sand beige or off-white colour. According to official Pegasus sales documentation, this specific "sand beige" was chosen to be gentle on operators' eyes and to complement modern factory environments.

Main Body: Sand beige / Off-white.
Mechanical Parts: Unpainted metal components like the needle plate and presser foot are typically silver (natural metal finish).
Table/Stand: Usually features a standard industrial
The Pegasus W1500 is a flatbed industrial machine, and its dimensions depend on whether you are measuring the machine head alone or the full workstation.

Machine Head Dimensions

The machine head itself is compact, designed to be mounted on a standard industrial table.

Head Dimensions: Approximately 40 cm x 25 cm x 30 cm.
Net Weight: The head alone weighs roughly 35 kg to 45 kg (standard for heavy-duty industrial interlock heads).
Gauge Sizes: The distance between needles (needle space) varies by subclass, common options include 3.2 mm, 4.0 mm, 4.8 mm, 5.6 mm, and 6.4 mm.

Workstation & Installation Space

When fully assembled with a table and motor, the machine requires significantly more space:

Tabletop Size: Usually 120 cm (Width) x 55 cm (Depth).
Total Height: Roughly 120 cm to 150 cm from the floor to the top of the thread stand.
Installation Types: The machine can be installed in two ways:
- Non-submerged: The machine sits entirely on top of the table.
- Semi-submerged: The machine is partially recessed into the table to provide a flatter working surface.

Stitch & Performance Dimensions

Stitch Length: Adjustable from 1.2 mm to 4.4 mm.
Presser Foot Lift: Provides up to 6.3 mm of clearance.

feed mechanism

The Pegasus W1500 features a differential drop feed mechanism, which is standard for high-speed industrial interlock machines. This system uses two sets of feed dogsthe main feed dog and the differential feed dogto ensure uniform feeding, especially on stretchable knit fabrics.

Key Components & Functions

Differential Feed Ratio: The machine allows you to adjust the speed of the front feed dog relative to the rear one. The standard ratio range is 1:0.5 to 1:1.3.
- Ratio > 1.0 (Gathering): Helps prevent "waving" or stretching of elastic fabrics by feeding more material in.
- Ratio < 1.0 (Stretching): Helps prevent puckering on specific lightweight materials.
Drop Feed Design: The feed dogs automatically drop below the needle plate surface when the presser foot is raised, allowing for much smoother loading and unloading of fabric.
Bottom Feed Configuration: This model primarily uses bottom feeding, where the fabric is moved by the feed dogs located underneath the needle plate.

Adjustment & Maintenance

Height Adjustment: The feed dog height can be adjusted according to fabric thickness to maintain consistent stitch quality.
Spare Parts: Critical components like the Main Feed Bar and Differential Feed Bar are available through industrial suppliers like ABC Sewing Machine. You can also find compatible Feed Dog Sets at StitchSpares.com.

stitch formation

The Pegasus W1500 utilizes an interlock (coverstitch) formation, typically categorized under the ISO 600 Class of stitches. It is designed to create a flat, highly elastic seam by interlocking multiple needle threads with a bottom looper thread and, optionally, a top spreader thread.

Core Stitch Components

The machine can be configured for various stitch formations based on the number of needles and threads used:

Needle Threads (2 or 3): Form parallel lines of straight stitching on the top of the fabric.
Bottom Looper Thread: Interlocks with the needle threads on the underside to create a "ladder" or "web" effect that covers raw fabric edges.
Top Spreader (Cover) Thread: If equipped, this thread zig-zags across the top between the needles, creating a decorative and protective "top cover".

The Formation Process

Looping: As the needles penetrate the fabric and begin to rise, they form loops behind the fabric.
Catching: The bottom looper moves horizontally to catch these loops, carrying the looper thread through them.
Spreading (Top Cover): On the top side, a "spreader" (or top looper) moves back and forth to lay the top cover thread across the path of the descending needles.
Locking: The needles then pass through the loops created by the looper and spreader, "locking" the threads together into a continuous chain.

This mechanism is enhanced by the W1500's new thread take-up system, which synchronizes the needle and top cover threads more effectively than older models to prevent overly tight stitches. [1]

no of needle

The Pegasus W1500 is a versatile industrial machine that standardly uses 2 or 3 needles, depending on your specific model and sewing needs. [1, 2]

Needle Configurations

2-Needle Configuration: Commonly used for standard hemming or attaching tapes. It is available in needle spaces of 3.2 mm, 4.0 mm, 4.8 mm, 5.6 mm, and 6.4 mm.
3-Needle Configuration: Used for high-elasticity coverstitching (with or without a top cover thread). Standard needle spaces for 3-needle models are 5.6 mm and 6.4 mm.
Convertibility: A major feature of the W1500 series is its easy convertibility. You can turn a 3-needle machine into a 2-needle machine simply by removing the middle needle. [1, 2, 3, 4, 5]

Thread Usage

The number of threads used varies with the needle count: [1, 2]

3 Threads: 2 needles and 1 looper (no top cover).
4 Threads: 2 needles, 1 looper, and 1 top cover spreader; or 3 needles and 1 looper.
5 Threads: 3 needles, 1 looper, and 1 top cover spreader. [1, 2, 3]

All W1500 subclasses come standard with thread guides and stands for three-needle (5-thread) operation, making it economical to switch between different setups.

stitch width length

The stitch length for the Pegasus W1500 series is adjustable within a range of 1.2 mm to 4.4 mm.

Stitch Settings

The standard density typically depends on your specific needle plate and fabric type:

Standard Stitch Length: Usually set between 1.8 mm and 2.2 mm for general garments.
Coarse Stitch Length: Settings of 2.5 mm or more are used for thicker fabrics or specific assembly tasks.
Stitches Per Inch:
- 11 to 14 stitches/inch when using standard (BS or BT) needle plates.
- Fewer than 10 stitches/inch when using coarse (CT) needle plates.

Adjusting the Length

Adjustment is typically performed using a push-button or dial-type mechanism, depending on the specific age and model of the W1500:

Open the cloth plate to access the adjustment section.
Press the stitch length button (if equipped) while rotating the handwheel until the desired number on the pulley aligns with the indicator mark.
Note: Always adjust your stitch length after adjusting the differential feed ratio, as changing the feed ratio can affect the actual length of the stitch.

stitch width

The stitch width of the Pegasus W1500 is defined by its "needle space" or gauge, which is the fixed distance between the needles. Unlike a domestic machine with a zigzag dial, the width on this industrial machine is set by the specific hardware installed.

Stitch Width (Needle Space) Options

The available widths depend on whether the machine is set up for 2 or 3 needles:

2-Needle Setup: Available widths are 3.2 mm, 4.0 mm, 4.8 mm, 5.6 mm, and 6.4 mm.
3-Needle Setup: Available widths are 5.6 mm and 6.4 mm.

Key Width Characteristics

Top Cover Stitch: When using the top spreader (5-thread mode), the decorative top thread spans the entire width between the outermost needles, up to 6.4 mm.
Convertibility: A 3-needle machine can be converted to a 2-needle machine with a different width by removing the middle needle. For example, removing the center needle from a 6.4 mm 3-needle gauge creates a wide 2-needle stitch.
Changing Widths: To significantly change the width (e.g., from 3.2 mm to 5.6 mm), you must replace the needle clamp, presser foot, and needle plate with a new gauge set.

weight and packaging dimension

The Pegasus W1500 is typically shipped in multiple packagesthe machine head, the table/stand, and the motor.

Weight Specifications

Machine Head (Net Weight): Approximately 35 kg to 45 kg (7799 lbs), depending on the specific sub-model and automatic features.
Gross Weight (Head with Box): Usually around 48 kg to 52 kg (106115 lbs).
Full Workstation: A complete set with table and servo motor can weigh 85 kg to 100 kg (187220 lbs) total.

Packaging Dimensions (Standard Head Box)

The machine head alone is typically packed in a heavy-duty cardboard carton with molded foam protection:

Dimensions: Approximately 60 cm x 40 cm x 62 cm (23.6" x 15.7" x 24.4").

Workstation Dimensions (Assembled)

Once assembled on its standard industrial stand, the footprint is as follows:

Tabletop: 120 cm x 55 cm (47.2" x 21.7").
Height: Adjustable stand, typically 75 cm to 85 cm to the tabletop, with a total height of ~150 cm including the thread stand

Power and Performance

The PEGASUS W1500 boasts a powerful 550W motor and a high-speed capacity of up to 6,000 SPM. Its interlock (coverstitch) stitch formation with 2 or 3 needles is designed for durable and neat seams, making it ideal for industrial or bulk sewing jobs. The 6.4mm stitch width and 4.4mm stitch length settings cater to diverse sewing requirements.

Robust Build and User-Friendly Operation

With compact dimensions (40cm x 25cm x 30cm) and an off-white or sand beige exterior, this flatbed machine optimizes space while offering reliable performance. Its differential drop feed mechanism ensures smooth material flow and precise stitching on various fabric types.

Service and Support

Distributed and serviced by qualified professionals in India, the PEGASUS W1500 comes with warranty support. Reliable importer, supplier, and trader channels ensure prompt maintenance and availability of parts, ensuring uninterrupted operation for your sewing needs.

FAQ's of PEGASUS W1500 FLATBED FLATLOCK SEWING MACHINE:

Q: How does the differential drop feed mechanism benefit my sewing projects?

A: The differential drop feed mechanism controls the movement of your fabric, reducing stretching or puckering. This ensures consistent, high-quality stitching, especially on stretchy or delicate materials.

Q: What types of stitching can the PEGASUS W1500 perform?

A: This machine offers interlock (coverstitch) formation, which is excellent for stretchable seams, decorative hems, and finishing edges. You can use 2 or 3 needles, depending on your desired seam strength and appearance.

Q: When is it optimal to use the flatbed flatlock feature of this sewing machine?

A: The flatbed flatlock function is best suited for joining flat pieces of fabric, such as in garment hemming, sportswear, or knitwear, ensuring smooth, comfortable seams without added bulk.

Q: Where can I access servicing or warranty support for the PEGASUS W1500 in India?

A: Warranty and servicing are provided by local experts, including importers, suppliers, and traders in India. Contact the distributor where you purchased the machine for the nearest authorized service center.

Q: What is the maximum fabric thickness and stitch width this machine can handle?

A: The PEGASUS W1500 accommodates fabric up to 6.3mm thick and produces stitches up to 6.4mm wide, making it versatile enough for various fabrication requirements.

Q: How should the PEGASUS W1500 be operated for optimal performance?

A: Operate the machine at the recommended voltage of 220V and ensure routine maintenance as outlined in the user manual. Use the proper needle configuration and adjust the feed settings according to your fabric for the best results.

Q: What benefits does this sewing machine offer for professional use?

A: With its high stitching speed, reliable build, and versatile features, the PEGASUS W1500 enhances productivity and delivers professional-grade seams, making it an excellent investment for garment manufacturers and commercial sewing operations.
