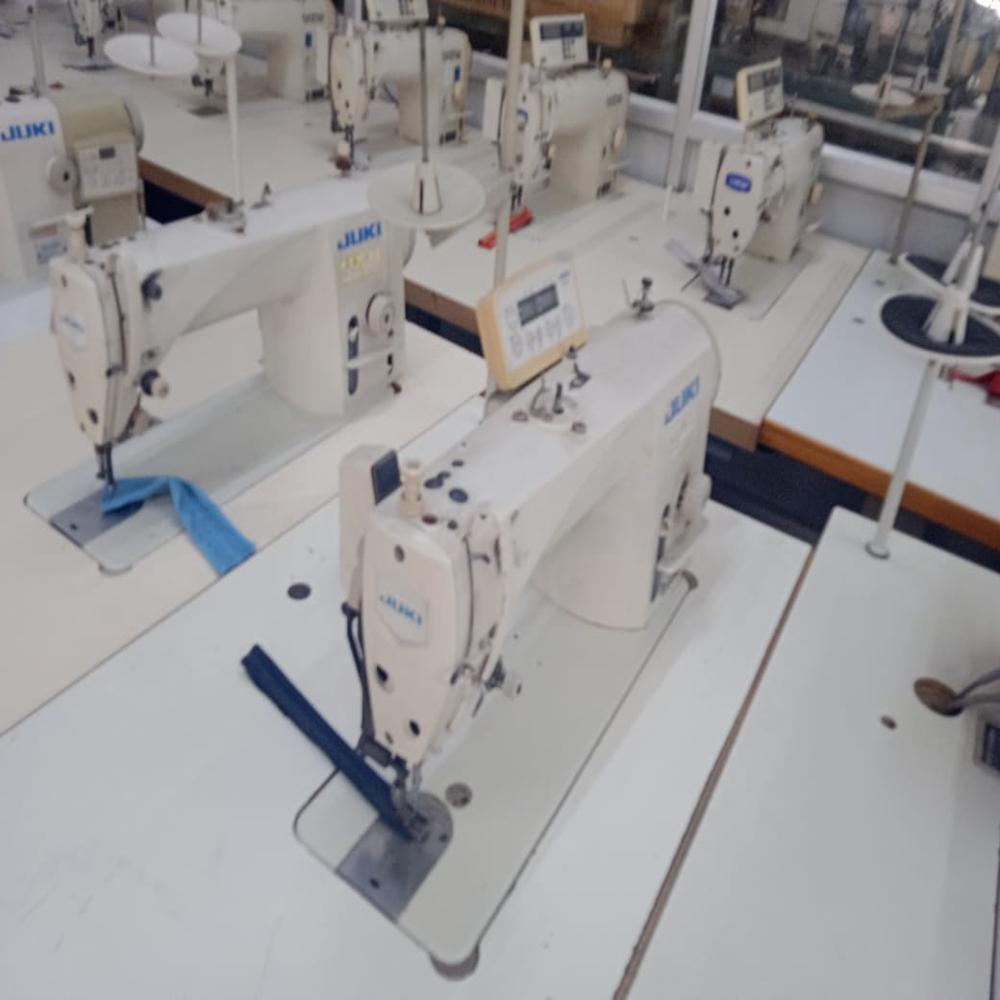

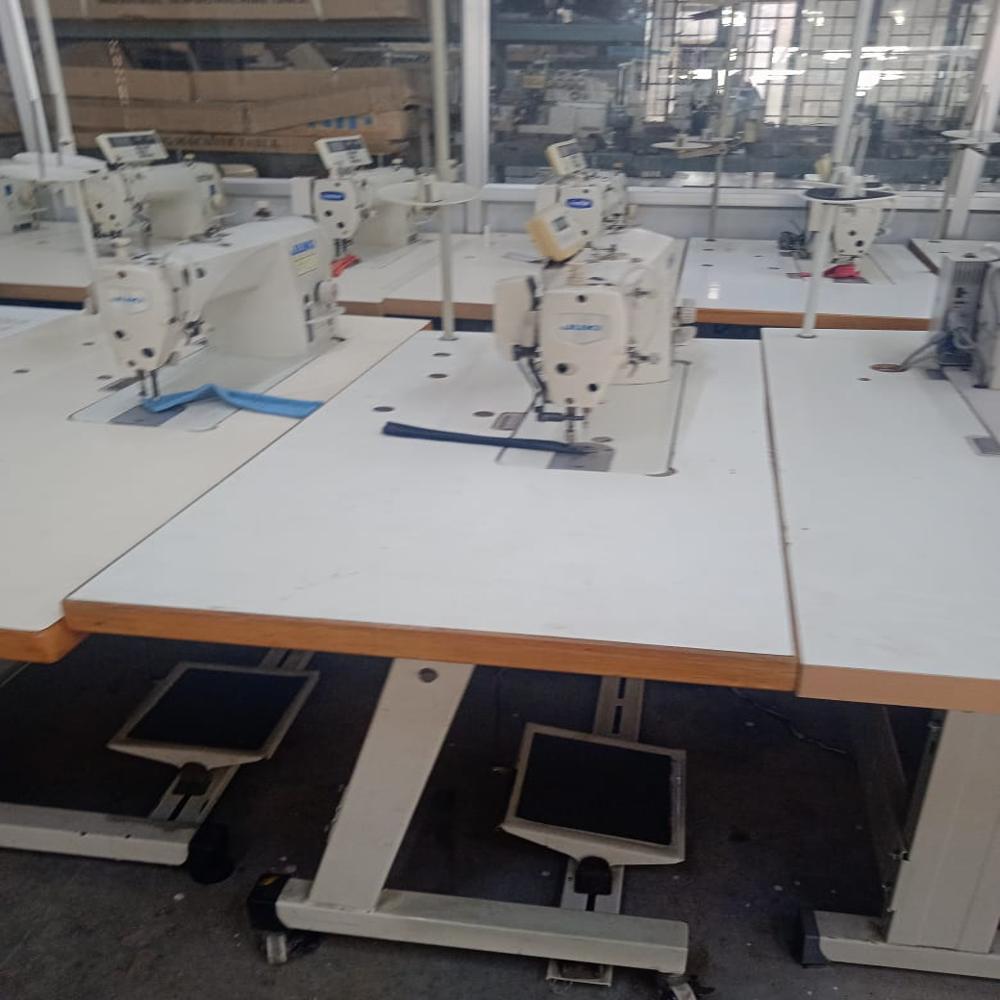

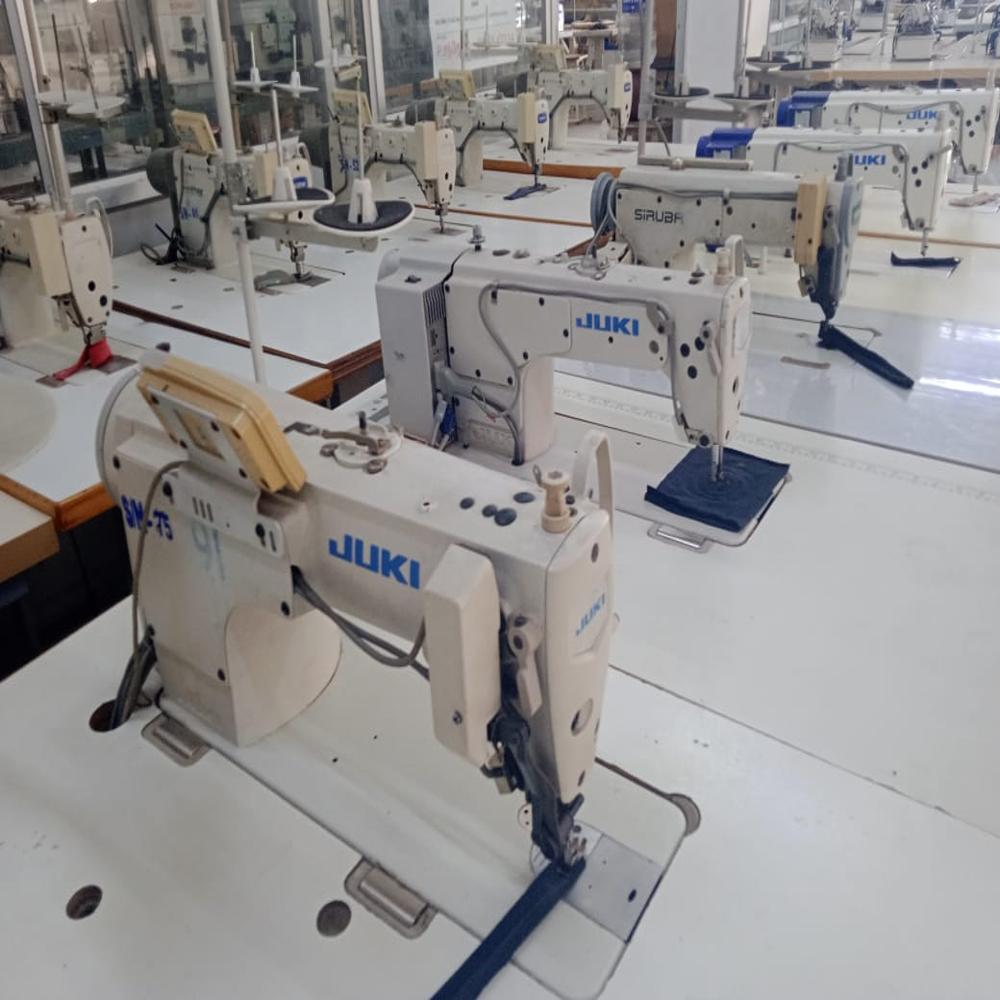

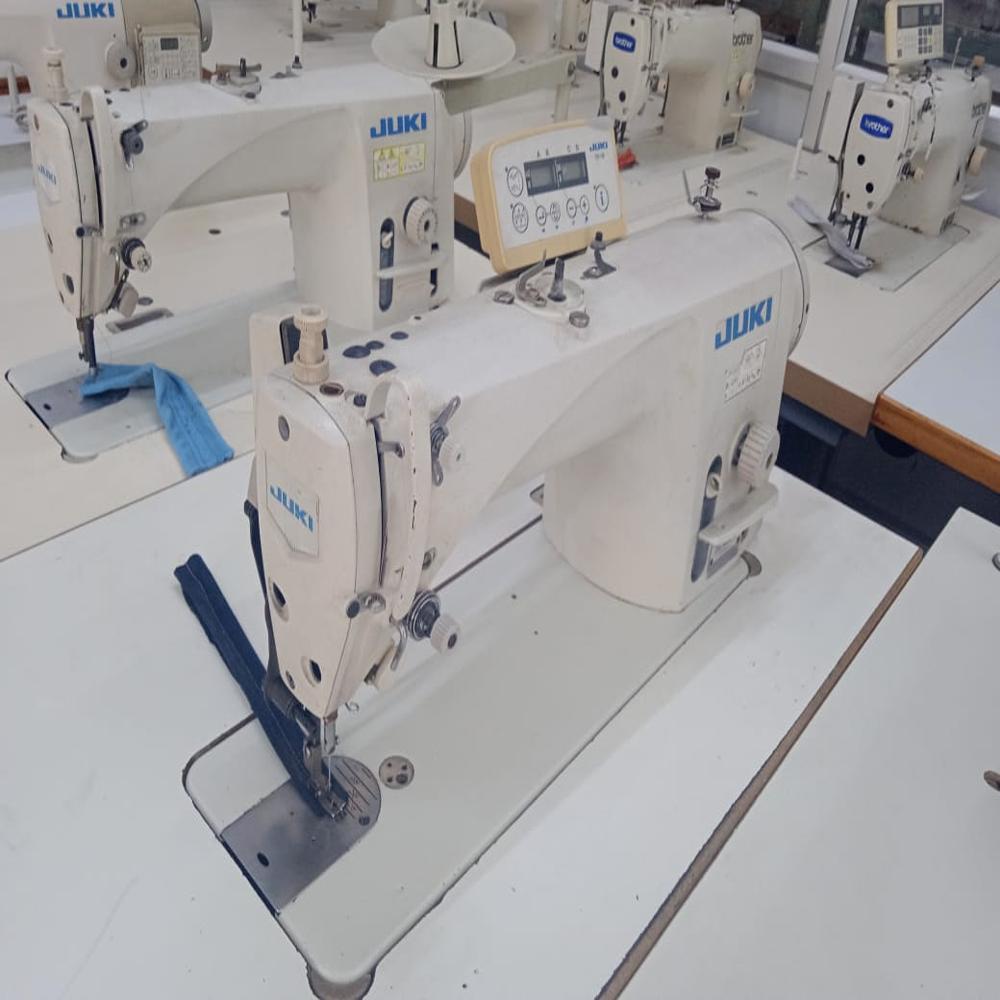

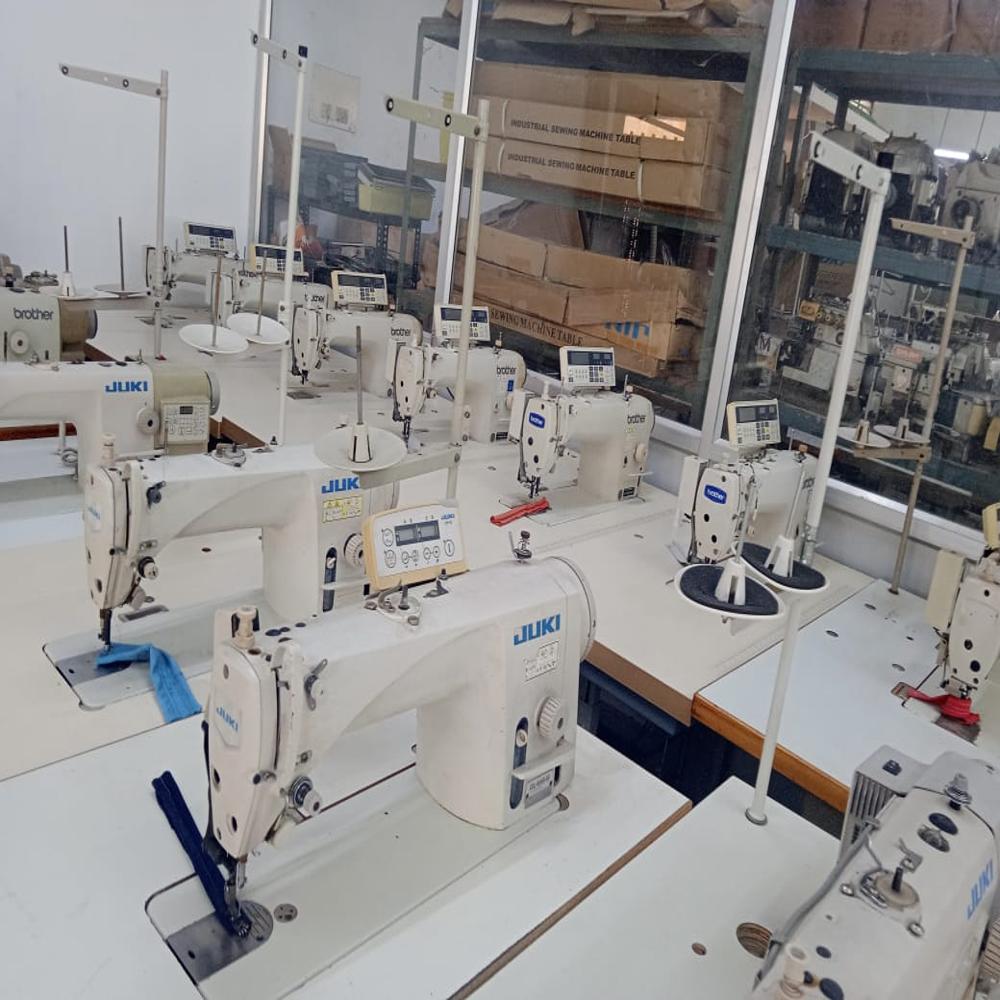

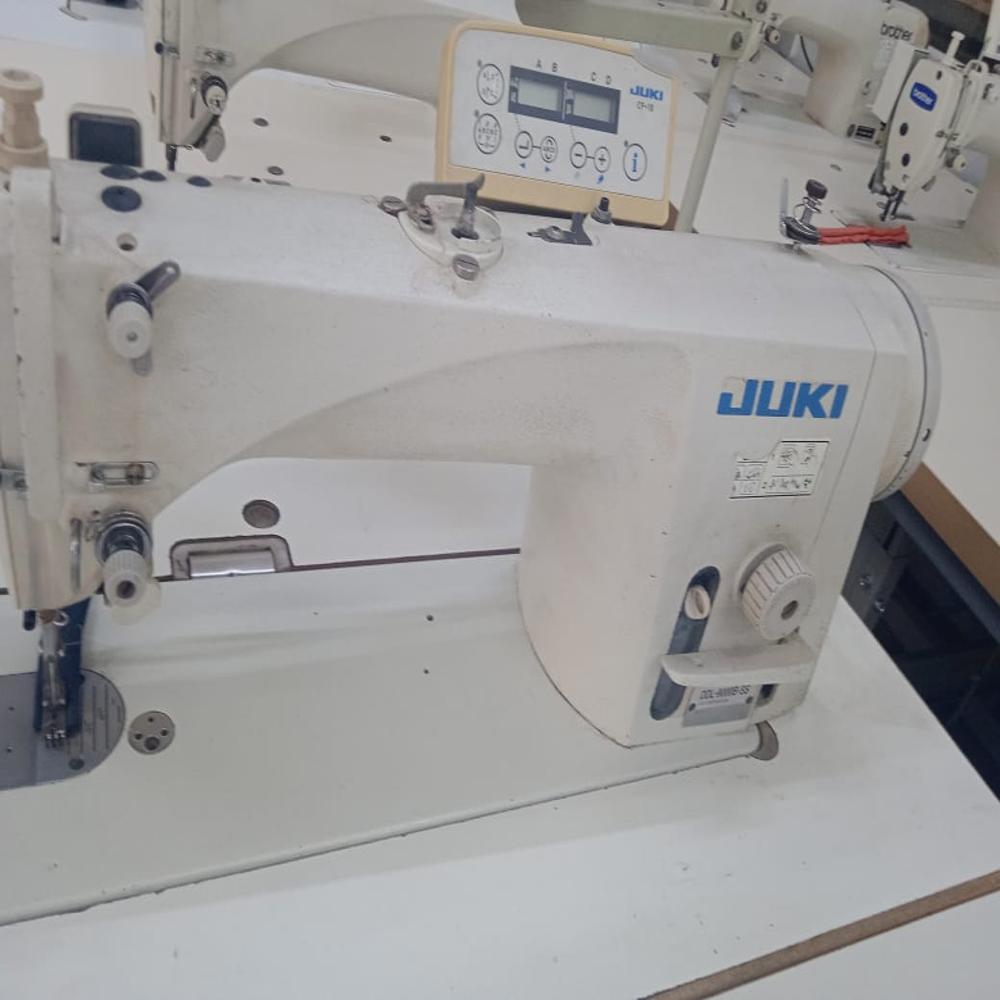

JUKI DDL 9000B -SS SINGLE NEEDLE LOCKSTITCH SEWING MACHINE

Price 19000.00 INR/ Number

Get a Price/Quote

MOQ : 1 Number

JUKI DDL 9000B -SS SINGLE NEEDLE LOCKSTITCH SEWING MACHINE Specification

Product Type
JUKI DDL 9000B -SS SINGLE NEEDLE LOCKSTITCH SEWING MACHINE

Feed Mechanism
drop feed mechanism,

Sewing Thickness
6mm

Sewing Speed
5000spm

Needle
1

Condition
Old

Power
550w Watt (w)

Color
industrial white

Stitch Length
5mm Millimeter (mm)

Warranty
yes

Operate Method
Electric

Stitch Formation
single-needle lockstitch

Voltage
220v Volt (v)

Stitch width
0mm

Dimension (L*W*H)
713*313*767 Millimeter (mm)

JUKI DDL 9000B -SS SINGLE NEEDLE LOCKSTITCH SEWING MACHINE Trade Information

Minimum Order Quantity
1 Number

Delivery Time
2 Days

Main Domestic Market
Tamil Nadu

JUKI DDL 9000B -SS SINGLE NEEDLE LOCKSTITCH SEWING MACHINE About

The JUKI DDL-9000B-SS is a high-speed, direct-drive, 1-needle lockstitch industrial sewing machine designed for high productivity and precision in garment manufacturing. It is a direct-drive model, meaning the motor is connected directly to the main shaft, which reduces noise and vibration compared to traditional clutch motors.

Key Specifications

Sewing Speed: Up to 5,000 stitches per minute (spm), making it one of the fastest in its class for efficiency.
Stitch Length: Maximum stitch length of 5 mm.
Lubrication: Uses a semi-dry head system, which minimizes oil leakage and prevents oil stains on fabrics by only supplying clean oil to the hook and needle bar.
Motor: Integrated 550W servo motor for energy efficiency and powerful performance across various fabric weights.

Performance Highlights

Durability: Built with a robust metal construction to withstand daily high-volume industrial use.
Ease of Use: Features a user-friendly interface with intuitive controls, making it suitable for both professionals and large-scale production environments.
Material Versatility: Effectively handles everything from lightweight fabrics like those used in shirts to heavier materials like denim.

The Juki DDL-9000B-SS is highly versatile, but its sewing thickness capacity depends on the specific material and your machine setup.Â

Material Thickness Capacity

Standard Capacity: It is primarily optimized for medium-weight materials. It can typically handle fabric layers up to 5mm6mm in standard configurations.
Heavy-Duty Performance: With the correct needle and pressure adjustments, it can handle thicker projects:

Denim: Can sew through 810 layers of denim (standard weight) due to its high-torque motor.
Leather/Upholstery: Can handle genuine leather and multiple heavy fabric layers up to 10mm13mm in advanced or "Pro" configurations.
Cotton/Silk: Designed for a smooth finish on even the thinnest materials like silk and voile without puckering.Â

Critical Adjustments for Thick Materials

To sew thicker materials effectively without skipping stitches or breaking needles, you should adjust the following:

Needle Size: Switch to a larger needle. For heavy materials like denim or light leather, use size 14 (#90) to 18 (#110).
Presser Foot Pressure: Use the adjustable presser foot pressure dial to ensure the material feeds evenly.
Stitch Length: Increase the stitch length for thicker materials to prevent "chewing" the fabric.
Sewing Speed: While it can hit 5,000 spm, it is recommended to slow down to 1,5003,000 spm when working on very thick or dense layers

Lubrication & Maintenance

Â Â The "SS" (Minute-quantity lubrication) system ensures that the hook receives just enough oil for high speeds without staining your project. If you frequently sew heavy materials, check the oil level regularly via the oil gauge to ensure the hook stays cool during high-friction tasks. [1, 2]
