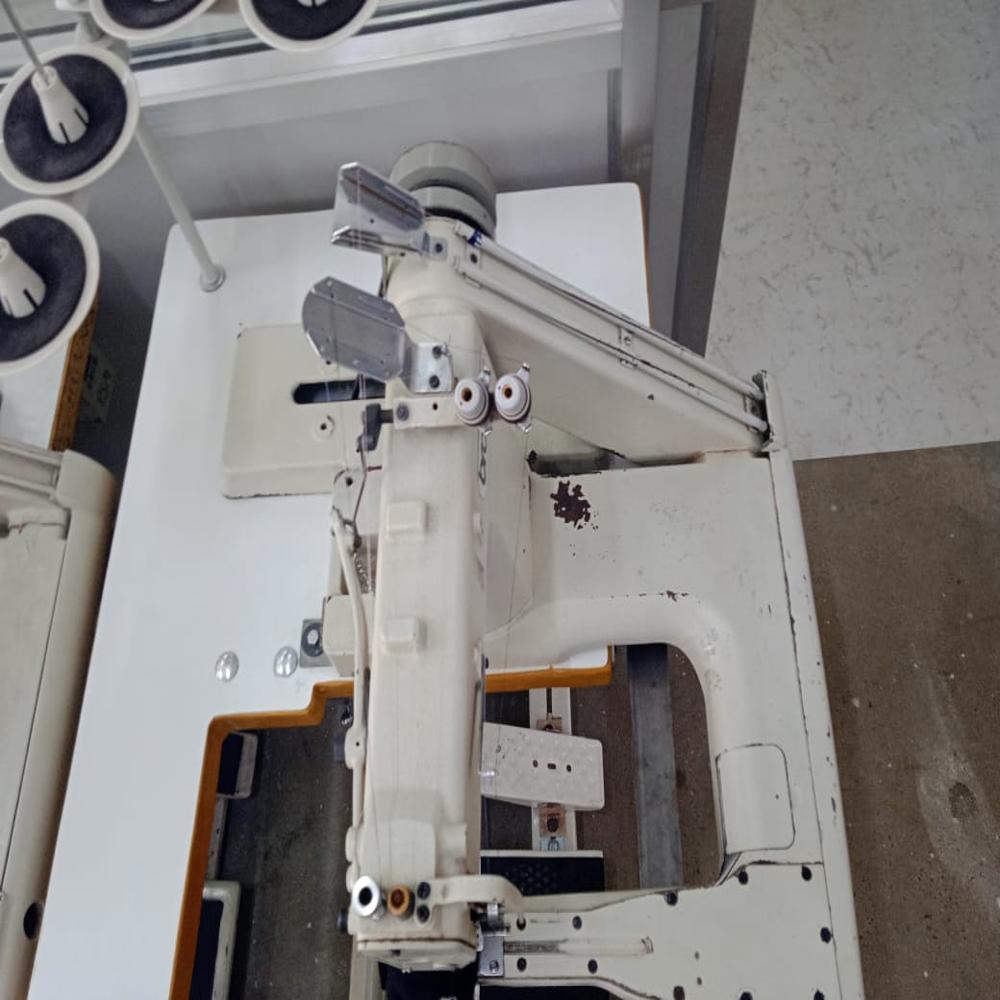

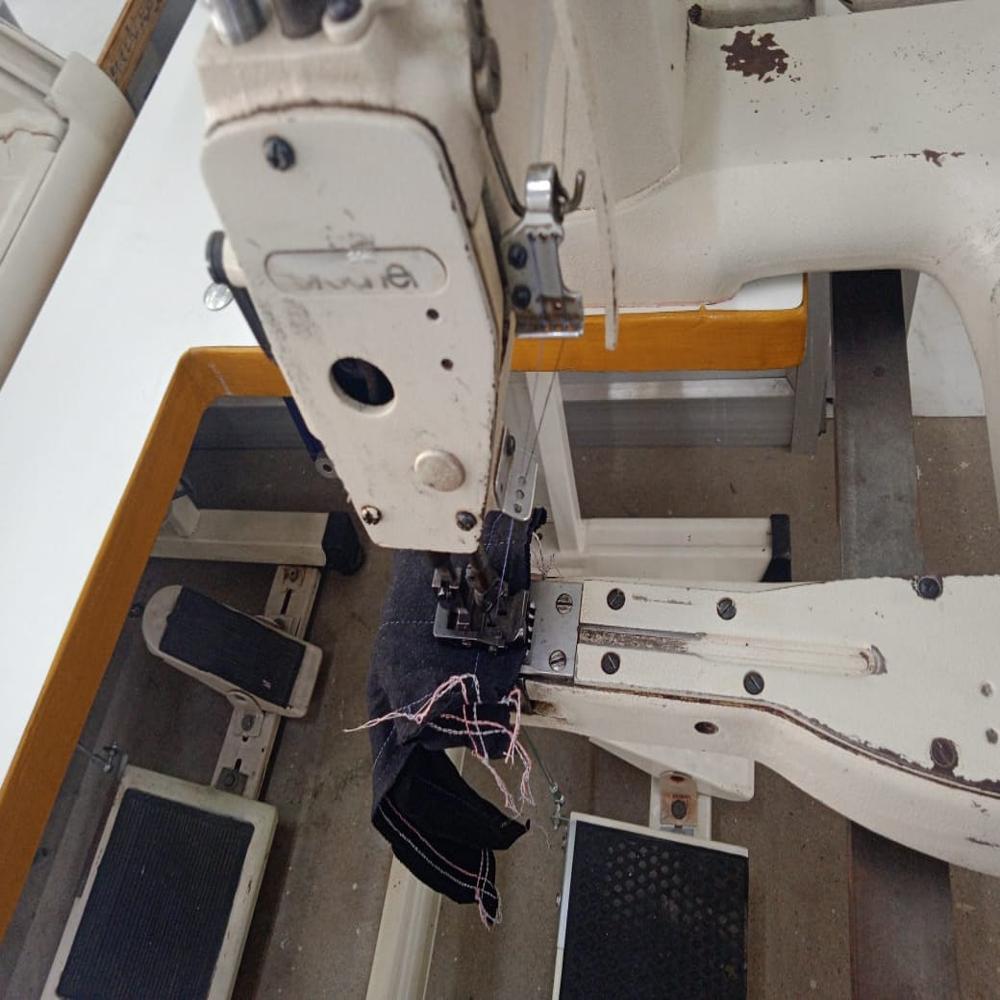

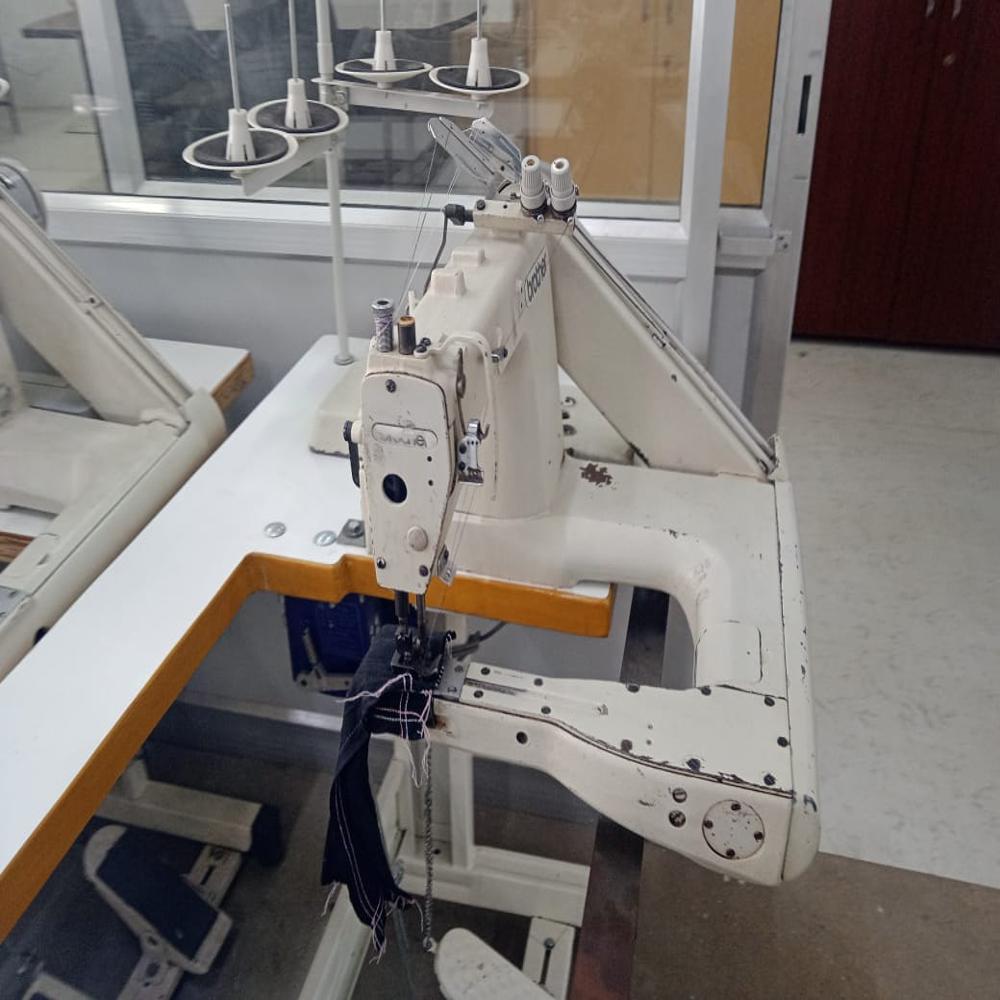

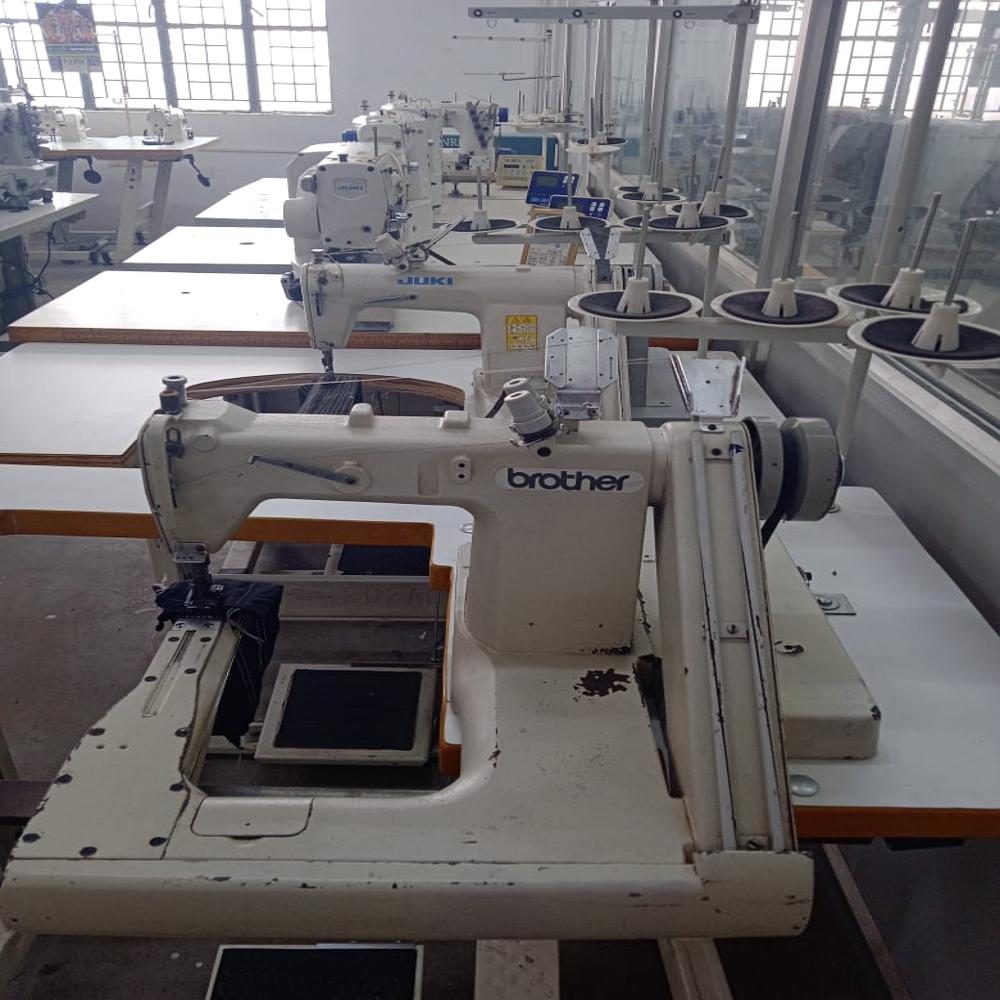

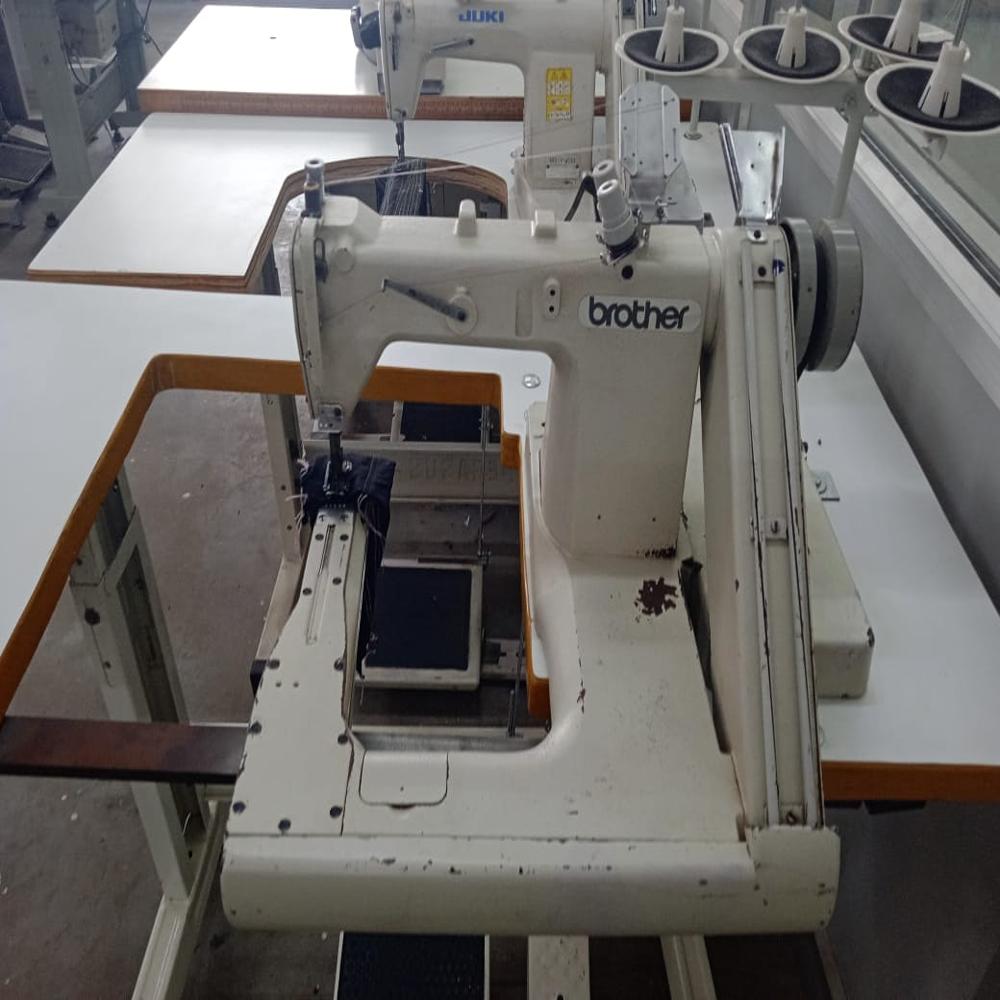

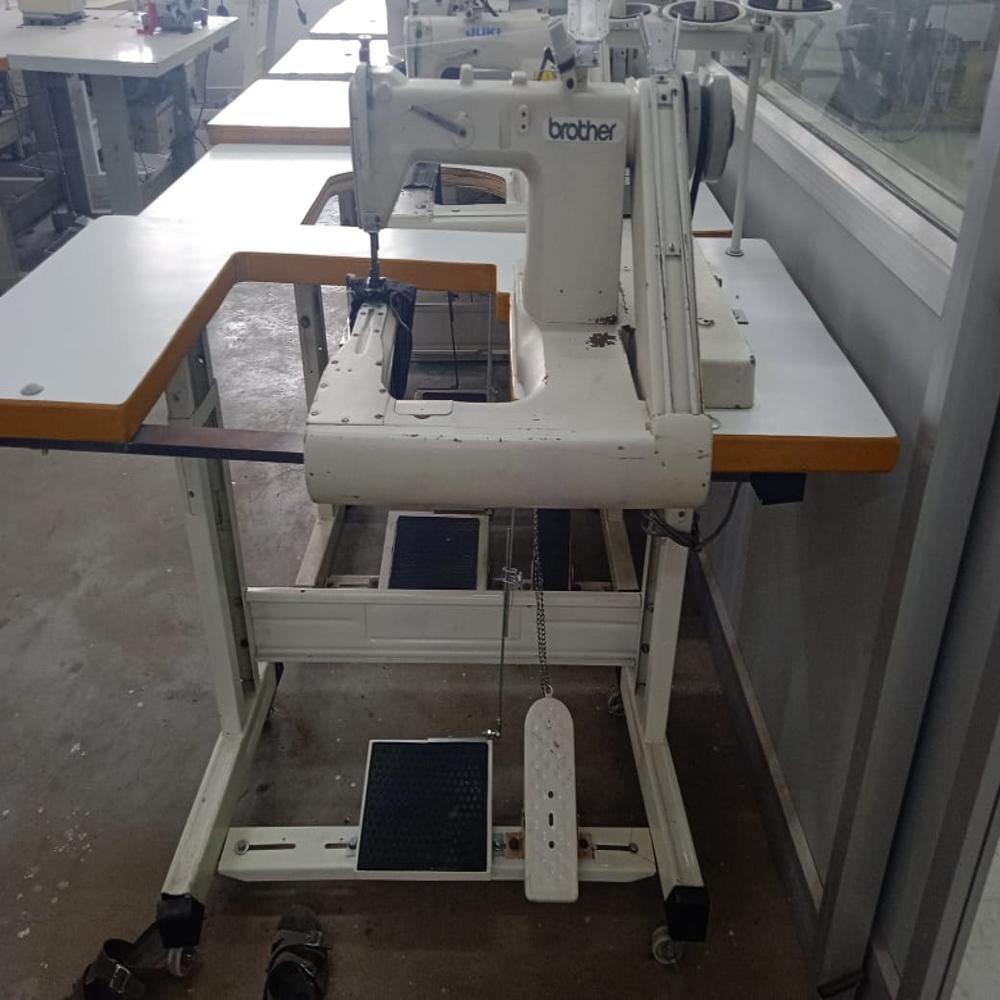

BROTHER FEEDOFF THE ARM SEWING MACHINE

Price 60000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

BROTHER FEEDOFF THE ARM SEWING MACHINE Specification

Sewing Speed
4,000 stitches per minute.

Feed Mechanism
bottom drop-feed system.

Warranty
yes

Product Type
BROTHER FEEDOFF THE ARM SEWING MACHINE

Color
Half white

Condition
Old

Dimension (L*W*H)
465*500*340 Millimeter (mm)

Needle
2

Stitch Length
5mm Millimeter (mm)

Stitch Formation
Class 400 Multi-Thread Double Chain Stitch

Stitch width
maximum 9.6mm

Sewing Thickness
11mm

Power
550w Watt (w)

Voltage
220v Volt (v)

Operate Method
Electric, Manual

BROTHER FEEDOFF THE ARM SEWING MACHINE Trade Information

Minimum Order Quantity
1 Number

Delivery Time
2 Days

BROTHER FEEDOFF THE ARM SEWING MACHINE About

The Brother Feed-Off-The-Arm Sewing Machine is an industrial lap-seaming powerhouse. It builds durable, pliant seams on cylindrical garment components. Key production setups leverage the Brother DA-9270 and Brother DA-9280 series to maximize assembly line throughput.Â

Core Industrial Models

Brother DA-9270 Double Chain Stitcher:
- Optimized strictly for light to medium materials like dress shirts.
- Features low-tension mechanisms preventing fabric puckering.
- Designed with a slim 171 mm perimeter cylinder bed.
- Delivers highly aesthetic, soft balloon stitches.
Brother DA-9280 Heavy Duty Chain Stitcher:
- Engineered specifically for heavy materials like denim jeans.
- Employs a specialized tractor-type presser foot.
- Rides smoothly over overlapping thick seams without jamming.
Brother DA-928A Minimum Lubrication Stitcher:
- Chosen by modern factories to fully eliminate oil stains.
- Utilizes a cutting-edge minimum lubrication mechanism.
- Integrates a highly safe knife shape for added security.Â

Key Technical Advantages

High-Speed Operation: Runs at speeds up to 4,000 stitches per minute.
Flexible Stitch Adjustment: Changes stitch lengths up to 5 mm via buttons.
Movable Needle Guards: Automatically prevents skipped stitches during high-speed feed cycles.
Zero Adjustment Timing: Syncs needle and feed mechanisms across length variations.

Thickness Handling Adjustments

Tractor Foot Upgrade: Helps climb heavy multi-layer denim laps smoothly.
Feed Dog Elevation: Raise up to 1.5 mm for heavy plies.
Needle System Scaling: Swap to Organ TVx64 #16 for medium weights.
Stitch Length Expansion: Adjust up to 4.2 mm to prevent structural binding.
Thread Cooler Installation: Add silicone tanks to stop heat breaks.Â

If you need to optimize your setup for a specific material thickness, please let me know:

Your exact denim or canvas ounce weight
Your current needle size and thread type
If you encounter skipped stitches at lap joints

The Brother Feed-Off-The-Arm sewing machine head has physical dimensions of 465 mm \(\times \) 500 mm \(\times \) 340 mm and requires a workspace layout footprint of roughly 615 mm \(\times \) 400 mm \(\times \) 600 mm. [1, 2]

Machine Head Physical Dimensions

Cylinder Arm Perimeter: Slim 171 mm circumference to easily manipulate small sleeves and jeans cuffs.
Machine Head Weight: Sturdy 49 kg cast iron construction requiring two people for safe lifting.
Base Core Footprint: Approximately 465 mm (width) \(\times \) 500 mm (depth) across the main mechanical base.
Machine Head Height: Stands at 340 mm from the bottom plate to the top of the needle bar assembly. [1, 2, 3, 4, 5]

Needle Gauge Spacing Dimensions

The spacing between multiple needle configurations dictates your final structural seam width:

2-Needle Setup Options: 4.8 mm (\(\frac{3}{16}\) in) | 5.6 mm (\(\frac{7}{32}\) in) | 6.4 mm (\(\frac{1}{4}\) in)
3-Needle Setup Options: 6.4 mm (\(\frac{1}{4}\) in) | 8.0 mm (\(\frac{5}{16}\) in) | 9.6 mm (\(\frac{3}{8}\) in) [1]

Table Mounting Requirements

If you are sourcing or drilling a custom commercial sewing tabletop: [1]

Tabletop Minimum Thickness: Requires a heavy-duty 40 mm thick wood board to handle high-speed vibrations.
Motor Power Footprint: Designed to mate with a standard 400W 2-pole clutch motor or an energy-efficient 750W servo motor setup beneath the table cutout.
